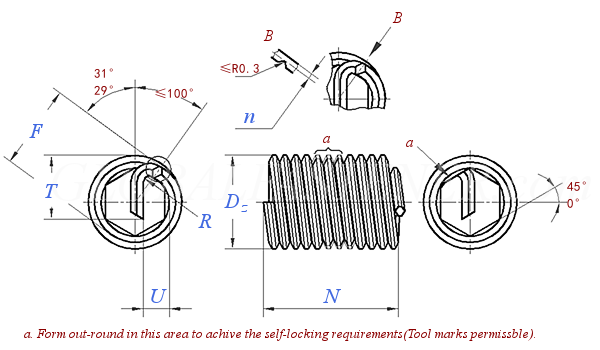

Aerospace Series-Inserts, Screw Thread, Helical Coil, Self-Lockong, In Corrosion Resisting Steel FE-PA3004

EN 2944 - 2018

Display drawing:

欧标EN 2944 - 2018 EN2944 2944EN Aerospace Series-Inserts, Screw Thread, Helical Coil, Self-Lockong, In Corrosion Resisting Steel FE-PA3004
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
For Nominal Thread Diameter
MJ4
×0.7 		MJ5
×0.8 		MJ6
×1 		MJ7
×1 		MJ8
×1 		MJ10
×1.25
Code
Dz max
min
F max
min
T max
min
R max
n max
min
U max
min
N tol. ±0.25 1.5D
2D
2.5D
per 1000 units≈kg 1.5D
2D
2.5D
040 050 060 070 080 100
5.6 6.8 7.95 9.2 10.25 12.65
5.05 6.25 7.4 8.65 9.7 12.1
5.6 6.8 7.95 9.2 10 12.3
4.9 6.1 7.25 8.4 9.2 11.5
3.55 4.55 4.85 5.5 6.5 8
2.5 3.15 3.7 4.3 4.75 5.5
0.45 0.6 0.6 0.75 0.75 0.75
0.34 0.37 0.5 0.5 0.5 0.6
0.31 0.34 0.45 0.45 0.45 0.55
1.67 2.09 2.55 3.1 3.88 4.77
1.02 1.41 1.65 2.09 2.27 2.86
6.1 6.9 6.8 8 9.4 9.5
8.6 9.6 9.5 11.1 13 13.1
11.1 12.4 12.1 14.1 16.5 16.8
0.22 0.4 0.72 0.99 1.32 2.57
0.31 0.55 0.99 1.36 1.8 3.52
0.39 0.7 1.26 1.73 2.28 4.46

Alternative history

EN 2944 - 1998 EN 2944 - 2018
