Hexalgon fit bolts for structural steel bolting for supply with or without nut

DIN 7968 - 1989

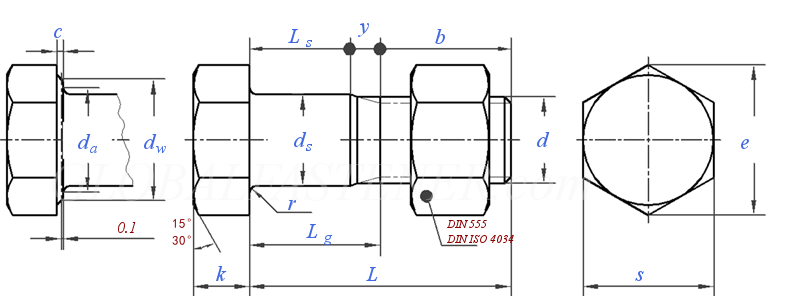

Display drawing:

德标DIN 7968 - 1989 DIN7968 7968DIN Hexalgon fit bolts for structural steel bolting for supply with or without nut
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M12 M12 M16 M20 M22 M22 M24 M27 M30
P
b
ds max
min
k Nominal Size
min
max
s max=nominal size
min
per 1000 units≈kg nut
1.75 1.75 2 2.5 2.5 2.5 3 3 3.5
17.12 17.12 20.5 23.75 25.75 25.75 26.5 29.5 31.25
13 13 17 21 23 23 25 28 31
12.89 12.89 16.89 20.87 22.87 22.87 24.87 27.87 30.84
8 8 10 13 14 14 15 17 19
7.55 7.55 9.25 12.1 13.1 13.1 14.1 16.1 17.95
8.45 8.45 10.75 13.9 14.9 14.9 15.9 17.9 20.05
18 19 24 30 34 32 36 41 46
17.57 18.48 23.16 29.16 33 31 35 40 45
15.9 15.9 30.8 60.3 80.2 80.2 103 154 216
Weight of per 1000 steel products(≈kg) screw
- - - - - - - - -

Alternative history

DIN 7968 - 1989 DIN 7968 - 2017
