Forged Steel Eyebolts Grade 4 for General Lifting Purposes

DIN EN ISO 3266 - 2016

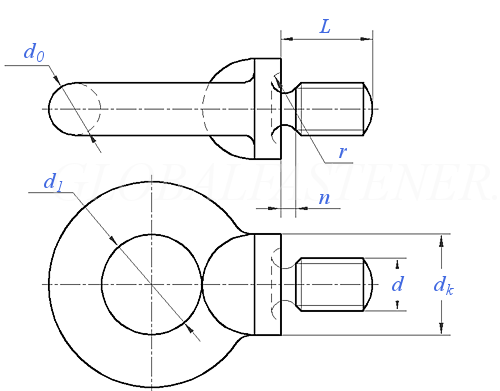

Display drawing:

德标DIN EN ISO 3266 - 2016 DIN EN ISO3266 Forged Steel Eyebolts Grade 4 for General Lifting Purposes
Screw Thread
d
M8 M10 M12 M16 M20 M24 M30 M36 M42
P Pitch
d1 min
L
d0 max
r min
dk min
n
working load limit(WLL)
/ / / / / / / / /
9 11 13 18 25 32 40 50 57
12 15 18 24 30 36 45 54 63
6 8 9 13 18 22 28 35 40
1 1 1 1 1 2 2 3 3
17 20 21 28 38 46 57 70 79
2 3 3 4 5 6 8 9 11
0.2 0.32 0.4 0.8 1.6 2.5 4 6.3 8
Screw Thread
d
M48 M52 M56 M64 M72 M80 M90 M100
P Pitch
d1 min
L
d0 max
r min
dk min
n
working load limit(WLL)
/ / / / 6 6 6 6
63 71 80 89 100 113 126 141
72 78 84 96 108 120 135 150
44 49 56 63 70 79 89 99
3 3 4 4 4 4 5 5
87 97 109 121 135 152 169 189
12 13 14 16 18 20 23 25
10 12.5 16 20 25 32 40 50
