Hexagon Head Tapping Screws with Collar [Annex Attached Table 3]

JIS B 1123 (AAT3) - 1996

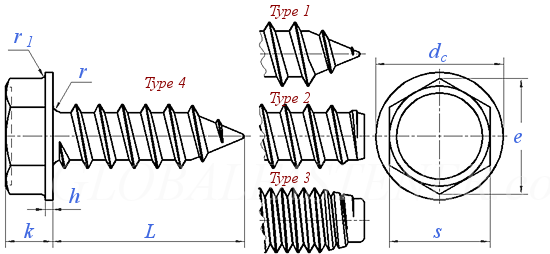

Display drawing:

日标JIS B1123 (AAT3) - 1996 JIS1123 1123JI Hexagon Head Tapping Screws with Collar [Annex Attached Table 3]
Nominal Diameter
3 3.5 4 4.5 5 6 8
s max
min
e min
k Nominal Size
max
min
r max
dc max
min
h Nominal Size
max
min
r1 max
3 5.5 7 7 8 10 12
2.8 5.3 6.8 6.8 7.8 9.8 11.75
5.5 6.05 7.7 7.7 8.7 10.9 13.1
1.6 2.3 2.5 2.7 3 3.5 5
1.7 2.4 2.6 2.8 3.1 3.65 5.15
1.5 2.2 2.4 2.6 2.9 3.35 4.85
0.4 0.4 0.5 0.5 0.6 0.7 0.9
7 8 9 10 10 13 16
6.6 7.6 8.6 9.6 9.6 12.5 15.5
0.5 0.5 0.6 0.7 0.8 0.9 1.2
0.65 0.65 0.75 0.85 1 1.1 1.45
0.35 0.35 0.45 0.55 0.6 0.7 0.95
0.45 0.5 0.6 0.7 0.8 0.9 1.2
