Click Specification

Unit:mm

YJT 6005 (SKK)

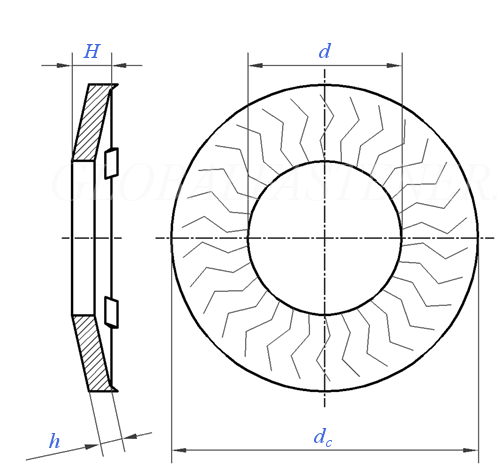

Display drawing:

标准YJT 6005 (SKK) YJT6005 6005YJT
Download CAD Model
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
For Nominal Thread Diameter
M4 M5 M6 M8 M10 M12
d min=nominal size
max
dc max=nominal size
min
h Nominal Size
max
min
H Nominal Size
max
min
per 1000 units ≈ kg
4.1 5.1 6.1 8.2 10.2 12.4
4.58 5.58 6.58 8.78 10.78 12.98
8.2 10.2 12.2 16.2 20.25 24.25
7.8 9.8 11.8 15.8 19.75 23.75
1 1 1.2 1.4 1.6 1.6
1.03 1.03 1.24 1.44 1.64 1.64
0.97 0.97 1.16 1.36 1.56 1.56
1.3 1.5 1.9 2.4 2.75 3
1.5 1.7 2.1 2.65 3 3.25
1.1 1.3 1.7 2.15 2.5 2.75
0.5 0.9 1.5 2 3.7 5.1
