Click Specification

Unit:mm

Hexagon Socket Flat Head Screw

YJT 4026

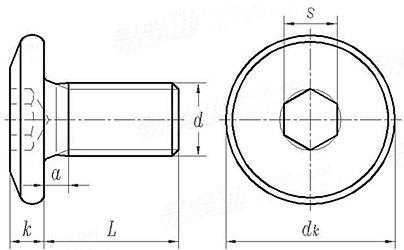

Display drawing:

企标YJT 4026 YJT4026 4026YJT Hexagon Socket Flat Head Screw
企标YJT 4026 YJT4026 4026YJT Hexagon Socket Flat Head Screw
Thread Size
d
M5 M6 M8
P Thread Pitch
dk Nominal Size
k Nominal Size
s Nominal Size
0.8 1.0 1.25
10.5 12.8 14
2.3 2.6 3.2
3 4 5
