Click Specification

Unit:mm

All-Metal Hexagon Collar Weld Nuts, Prevailing Torque Type

QC /T 888 - 2011

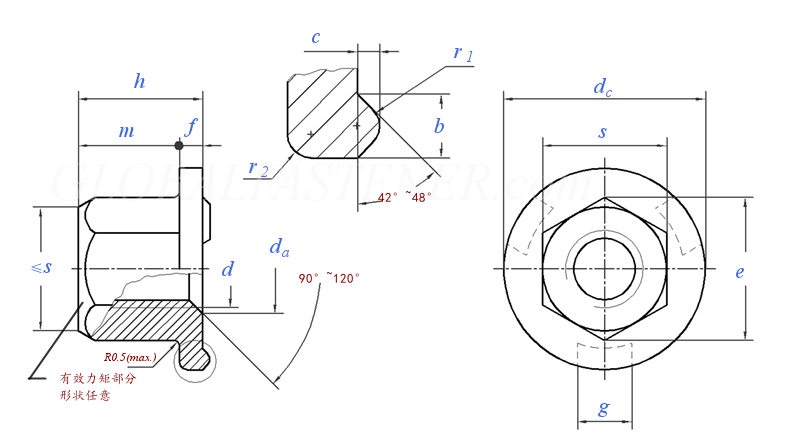

Display drawing:

汽标QC /T888 - 2011 QC888 888QC All-Metal Hexagon Collar Weld Nuts, Prevailing Torque Type
Screw Thread
d
M8 M10 M12 M14
P Pitch
b max
min
c max
min
da max
dc max
min
e min
f max
min
g max
min
h min
m max
min
r1 max
min
r2 max
min
s max
min
aperture（max）
aperture（min）
Thickness of welding plate（max）
Thickness of welding plate（min）
1.25 1.5 1.75 2
2.7 2.95 3.2 3.45
2.5 2.75 3 3.25
1.1 1.3 1.3 1.3
0.9 1.1 1.1 1.1
9.5 11.5 14 16
22.5 26.5 30.5 33.5
21.5 25.5 29.5 32.5
13.6 16.9 19.4 22.4
2.75 3.25 3.25 4.25
2.25 2.75 2.75 3.75
6.1 7.1 8.1 8.1
5.9 6.9 7.9 7.9
10.74 13.27 15.57 17.66
10 13 15 17
9.64 12.57 14.57 16.16
0.9 1.1 1.1 1.1
0.7 0.9 0.9 0.9
0.9 1.1 1.3 1.3
0.7 0.9 1.1 1.1
13 16 18 21
12.73 15.73 17.73 20.67
10.5 12.5 14.8 16.8
10.41 12.41 14.69 16.69
2 2.5 3 3.5
1 1.25 1.5 2
