Round Weld Nuts

QC /T 867 - 2011

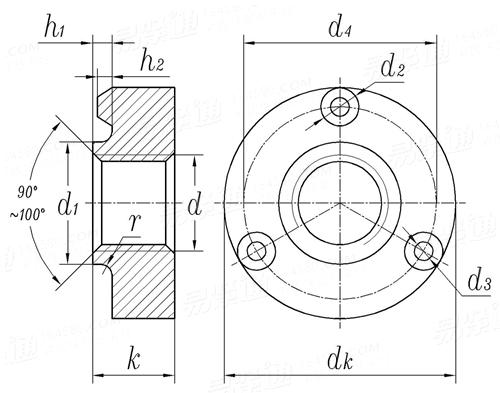

Display drawing:

汽标QC /T867 - 2011 QC867 867QC Round Weld Nuts
Thread Size
d
M4 M5 M6 M8 M10 M12
P Pitch
d4 max
min
dk max
min
d3 max
min
d2 max
min
d1 max
min
k max
min
h1 max
min
h2 max
min
r max
min
0.7 0.8 1 1.25 1.5 1.75
10.9 11.9 13.3 17.9 19.9 22.7
10.5 11.5 12.9 17.5 19.5 22.3
13.7 14.7 16.5 22.2 24.2 27.7
13.3 14.3 16.1 21.8 23.8 27.3
2.8 2.8 3.2 4.3 4.3 5
2.5 2.5 2.9 4 4 4.7
0.95 0.95 1.5 2.1 2.1 2.5
0.65 0.65 1.2 1.8 1.8 2.2
5.7 6.7 7.7 10.7 12.7 14.7
5.5 6.5 7.5 10.4 12.4 14.4
4.45 4.7 5.2 6.8 8.4 10.8
4.15 4.4 4.9 6.44 8.04 10.37
1.35 1.35 1.55 2 2 2.5
1.1 1.1 1.3 1.75 1.75 2.25
0.85 0.85 1 1.5 1.5 2
0.65 0.65 0.75 1.19 1.19 1.78
0.65 0.65 0.75 1.00 1.00 1.00
0.15 0.15 0.25 0.50 0.50 0.50
