Welding Screws for Plastic

QC /T 891 - 2011

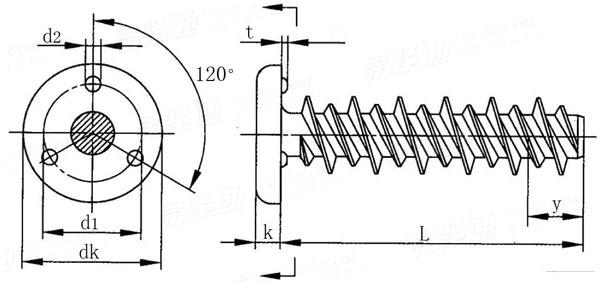

Display drawing:

汽标QC /T891 - 2011 QC891 891QC Welding Screws for Plastic

Screw Thread
d

NST 3

NST 3.5

NST 4

NST 5

NST 6

d_k	max
	min
k	max
	min
d₁
d₂	max
	min
t	max
	min
y	Ref.

8.3	9.4	10.9	12.3	14.5
8.1	9.2	10.7	12.1	14.2
1	1.2	1.3	1.7	2.1
0.6	1	1.1	1.5	1.9
6.2	7	8	9.2	10.8
1.1	1.4	1.9	2.1	2.7
0.9	1.2	1.7	1.9	2.4
0.45	0.55	0.7	0.8	1.05
0.35	0.45	0.6	0.7	0.95
1.9	2.4	2.6	3.6	4
