Click Specification

Unit:mm

Metric Series, Grooved Pins with Round Head, TYPE 46-1 TYPE 46-2 [Table 8]

ASME/ANSI B 18.8.100M (B18.8.9M T8) - 2000 (R2005)

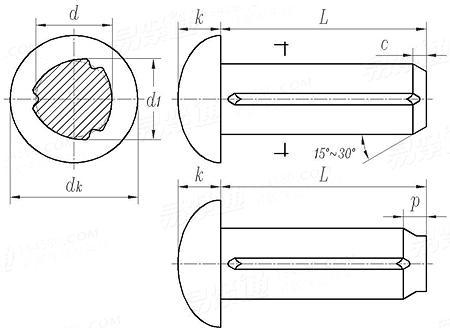

Display drawing:

美标ASME/ANSI B18.8.100M (B18.8.9M T8) - 2 Metric Series, Grooved Pins with Round Head, TYPE 46-1 TYPE 46-2 [Table 8]

Nominal Length L Tips:seclect Nominal Length L and get .

Nominal Diameter
d

1.4

1.6

2

2.5

3

4

5

6

8

10

12

d	max
d	min
d_k	max
d_k	min
k	max
k	min
c	Ref.
P	Ref.
d₁	Ref.

1.4	1.6	2	2.5	3	4	5	6	8	10	12
1.35	1.55	1.95	2.425	2.925	3.9	4.9	5.9	7.85	9.85	11.8
2.6	3	3.7	4.6	5.45	7.3	9.1	10.9	14.4	16	19
2.2	2.6	3.3	4.2	4.95	6.75	8.5	10.2	13.6	14.9	17.7
0.95	1.15	1.35	1.7	1.95	2.55	3.2	3.85	5.05	7.4	8.4
0.7	0.9	1.1	1.4	1.65	2.25	2.85	3.45	4.6	6.5	7.5
0.2	0.2	0.25	0.3	0.4	0.5	0.63	0.8	0.8	0.8	0.8
0.42	0.48	0.6	0.75	0.9	1.2	1.5	1.8	2.4	3	3.6
0.04	0.04	0.05	0.05	0.07	0.07	0.07	0.07	0.08	0.08	0.1

d₁

-

-

-

-

-

-

-

-

-

-

-

Similar Standards

1		[ASME] ASME B 18.8.2 - 2020	Round Head Grooved Drive Studs
2		[ISO] ISO 8746 - 1997	Grooved Pins with Round Head
3		[EN] EN 28746 - 1992	Grooved Pins with Round Head
4		[DIN EN ISO] DIN EN ISO 8746 - 1998	Grooved Pins with Round Head
5		[DIN] DIN 1476 - 1978	Round Head Grooved Pins
6		[ASME] ASME B 18.8.2 - 2000 (R2010)	Round Head Grooved Drive Studs
7		[ISO] ISO 8746 - 1986	Grooved Pins with Round Head
8		[GB] GB /T 13829.8 - 2004	Grooved Pins with Round Head
9		[GB] GB /T 13829.3 (A) - 1992	Grooved Pins - with Round Head
10		[NF] NF E 25-766 - 1997	Grooved Pins with Round Head
