Click Specification

Unit:mm

Metric Series, Grooved Pins with Countersunk Head, TYPE 47-1 TYPE 47-2 [Table 9]

ASME/ANSI B 18.8.100M (B18.8.9M T9) - 2000 (R2005)

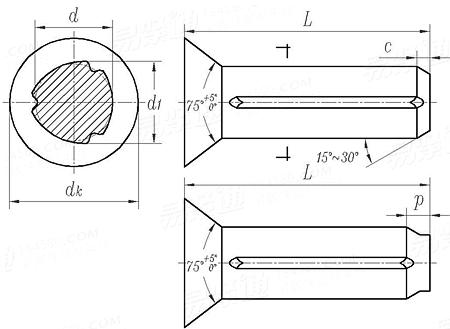

Display drawing:

美标ASME/ANSI B18.8.100M (B18.8.9M T9) - 2 Metric Series, Grooved Pins with Countersunk Head, TYPE 47-1 TYPE 47-2 [Table 9]
Nominal Length L Tips:seclect Nominal Length L and get .
Nominal Diameter
d
1.4 1.6 2 2.5 3 4 5 6 8 10 12
d max
min
dk max
min
c Ref.
P Ref.
d1 Tol.
1.4 1.6 2 2.5 3 4 5 6 8 10 12
1.35 1.55 1.95 2.425 2.925 3.9 4.9 5.9 7.85 9.85 11.8
2.7 3 3.7 4.6 5.45 7.25 9.1 10.8 14.4 16 19
2.3 2.6 3.3 4.2 4.95 6.75 8.5 10.2 13.6 14.9 17.7
0.2 0.2 0.25 0.3 0.4 0.5 0.63 0.8 0.8 0.8 0.8
0.42 0.48 0.6 0.75 0.9 1.2 1.5 1.8 2.4 3 3.6
0.04 0.04 0.05 0.05 0.07 0.07 0.07 0.07 0.08 0.08 0.1
d1
- - - - - - - - - - -
