Click Specification

Unit:mm

Steel Washers for Pins, Grade A

GOST 9649 - 1978

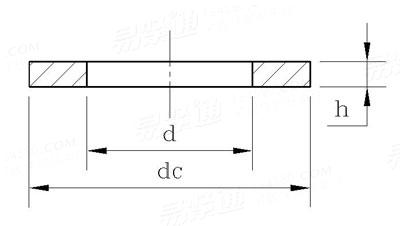

Display drawing:

俄标GOST 9649 - 1978 GOST9649 9649GOST Steel Washers for Pins, Grade A
Size
3 4 5 6 8 10 12 14 16 18 20 22 24 (25) 27 (28)
d
dc
h
3 4 5 6 8 10 12 14 16 18 20 22 24 25 27 28
6 8 10 12 15 18 20 22 24 28 30 34 37 36 39 40
0.8 0.8 1 1.6 2 2.5 3 3 3 4 4 4 4 4 5 4
Size
30 (32) 33 36 40 45 50 55 60 65 70 75 80 90 100
d
dc
h
30 32 33 36 40 45 50 55 60 65 70 75 80 90 100
44 45 47 50 56 60 66 72 78 90 92 100 98 110 120
5 4 5 6 6 6 8 8 10 8 10 8 12 12 12
