Square Head Set Screws with Cup Point

JIS B 1118 - 2010

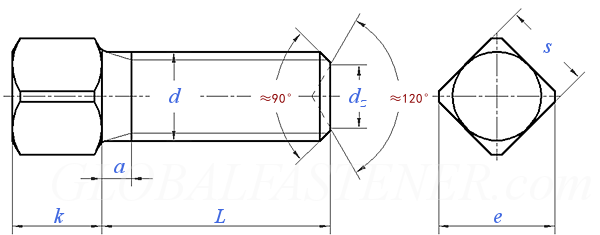

Display drawing:

日标JIS B1118 - 2010 JIS1118 1118JIS Square Head Set Screws with Cup Point
Thread Size
d
M4 M5 M6 M8 M10 M12
P Pitch
k Nominal Size
max
min
s max=nominal size
min
e min
dz max
min
0.7 0.8 1 1.25 1.5 1.75
4 5 6 8 10 12
4.15 5.15 6.15 8.18 10.18 12.22
3.85 4.85 5.85 7.82 9.82 11.78
4 5 6 8 10 12
3.82 4.82 5.82 7.78 9.78 11.73
4.97 6.27 7.57 10.1 12.7 15.2
2 2.5 3 5 6 8
1.75 2.25 2.75 4.7 5.7 7.64
①,a≈2P
