(Non-preferred) dimensions in parentheses.

Unit:mm

Slotted Set Screws With Dog Point And Round End

CNS 4653 - 1983

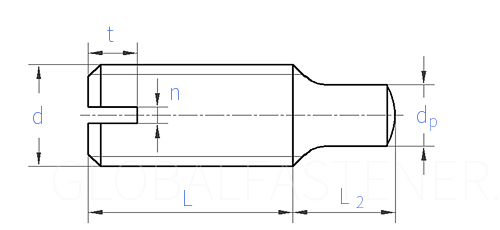

Display drawing:

台湾CNS 4653 - 1983 CNS4653 4653CNS Slotted Set Screws With Dog Point And Round End

Screw Thread
d

M1

M1.2

M1.4

M1.6

(M1.8)

M2

M2.5

M3

(M3.5)

M4

M5

M6

d_p	max=nominal size
	min
n
t	min
	max

0.5	0.7	0.8	0.8	1	1.2	1.5	2	2.5	2.8	3.5	4.5
0.475	0.675	0.775	0.775	0.975	1.175	1.475	1.975	2.475	2.775	3.47	4.47
0.2	0.2	0.2	0.25	0.25	0.25	0.4	0.5	0.5	0.6	0.8	1
0.63	0.63	0.75	0.88	0.88	1	1.1	1.25	1.5	1.75	2	2.5
0.78	0.79	0.94	1.06	1.07	1.2	1.33	1.5	1.78	2.05	2.35	2.9

Similar Standards

1		[EN] EN 27435 - 1992	Slotted Set Screws With Long Dog Point
2		[DIN] DIN 926 - 1986	Slotted set screws with full dog point
3		[DIN EN] DIN EN 27435 - 1992	Slotted Set Screws With Long Dog Point
4		[DIN] DIN 926 - 2003	Slotted Set Screws With Dog Point
5		[DIN] DIN 417 - 1986	Slotted Set Screws With Long Dog Point
6		[ASME/ANSI] ASME/ANSI B 18.6.2 - 1998 (R2010)	Slotted set screws with long dog point [Table 5] (A307, SAE J429, F468, F593)
7		[ISO] ISO 7435 - 1983	Slotted Set Screws With Long Dog Point
8		[ASME/ANSI] ASME/ANSI B 18.6.2 - 1998 (R2010)	Slotted set screws with short dog point [Table 5] (A307, SAE J429, F468, F593)
9		[JIS] JIS B 1117 (T4) - 2010	Slotted Set Screws With Long Dog Point
10		[JIS] JIS B 1117 (T3) - 1995	Slotted set screws with long dog point
11		[GB] GB 75 - 1985	Slotted Set Screws With Long Dog Point
12		[GB] GB /T 829 - 1988	Slotted set screws with dog point
13		[GB] GB /T 75 - 2018	Slotted Set Screws With Long Dog Point
14		[NF] NF E 25-162 - 1992 (R2002)	Slotted Set Screws With Long Dog Point
15		[CNS] CNS 4475 - 1981	Slotted Set Screws With Dog Piont
