Click Specification

Unit:mm

Shear Connectors(SD)

ISO 13918 (SD) - 1998

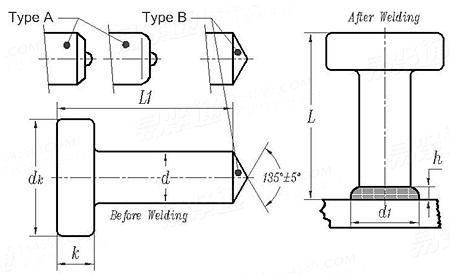

Display drawing:

国际ISO 13918 (SD) - 1998 ISO13918 13918IS Shear Connectors(SD)
Download CAD Model*
国际ISO 13918 (SD) - 1998 ISO13918 13918IS Shear Connectors(SD)
Download CAD Model*

 *Models with different eras.

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
10 13 16 19 22 25
d max
min
dk Nominal Size
max
min
d1
k Nominal Size
max
min
h
10 13 16 19 22 25
9.6 12.6 15.6 18.6 21.6 24.6
19 25 32 32 35 40
19.3 25.3 32.3 32.3 35.3 40.3
18.7 24.7 31.7 31.7 34.7 39.7
13 17 21 23 29 31
7 8 8 10 10 12
7.5 8.5 8.5 10.5 10.5 12.5
6.5 7.5 7.5 9.5 9.5 11.5
2.5 3 4.5 6 6 7
Weight of per 1000 steel products(≈kg)
- - - - - -

Alternative history

ISO 13918(SD) - 1998 ISO 13918(SD) - 2017
