Spectacle Frames - Slotted Round Head Screws

JIS B 1119 (1R) - 1986

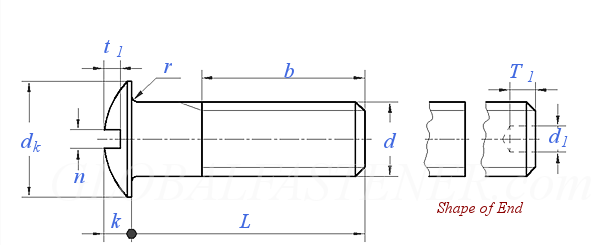

Display drawing:

日标JIS B1119 (1R) - 1986 JIS1119 1119JIS Spectacle Frames - Slotted Round Head Screws

Screw Thread
d

M1
×1.5

M1
×1.8

M1.2
×1.8

M1.2
×2

M1.4
×1.8

M1.4
×2

M1.4
×2.5

M1.4
×2.8

M1.6
×2.5

M1.6
×2.8

(M1.7)
×2.5

(M1.7)
×2.8

M2
×3

P	Pitch
d_k	max
	min
k	max
	min
n	max
	min
r	max
d₁
T₁

0.25	0.25	0.25	0.25	0.3	0.3	0.3	0.3	0.35	0.35	0.35	0.35	0.4
1.5	1.8	1.8	2	1.8	2	2.5	2.8	2.5	2.8	2.5	2.8	3
1.36	1.66	1.66	1.86	1.66	1.86	2.36	2.66	2.36	2.66	2.36	2.66	2.86
0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67
0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53
0.4	0.4	0.4	0.48	0.4	0.48	0.48	0.48	0.48	0.48	0.48	0.48	0.48
0.32	0.32	0.32	0.4	0.32	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
/	/	/	/	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	/
/	/	/	/	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	/
