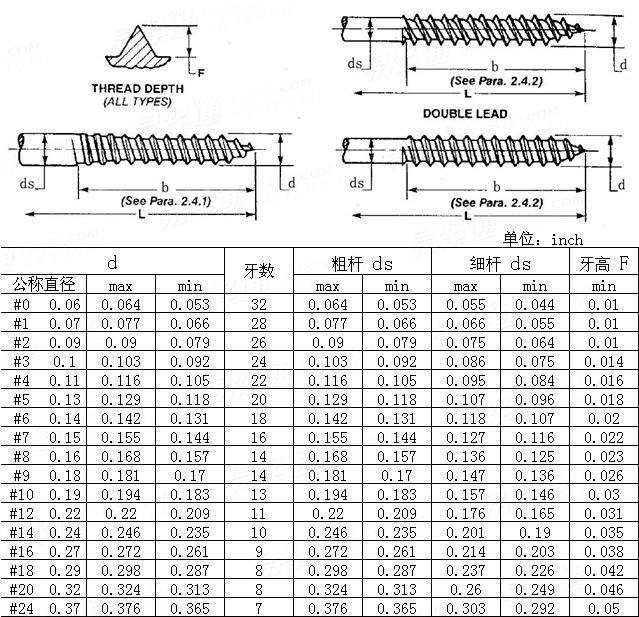

ASME/ANSI B 18.6.1 (T1) - 1981 Wood thread [Table 1]

Wood thread [Table 1]

ASME/ANSI B 18.6.1 (T1) - 1981

Display drawing:

美标ASME/ANSI B18.6.1 (T1) - 1981 ASME/ANS Wood thread [Table 1]

Scan QR Code

Show on Mobile terminal.
Share with friends!
