Click Specification

Unit:mm

Special Foundation Nuts for Special Foundation Bolts According to DIN 797

DIN 798 - 1972

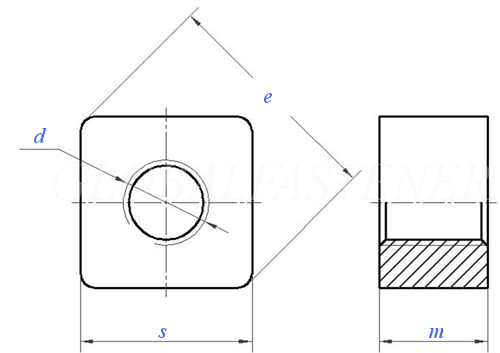

Display drawing:

德标DIN 798 - 1972 DIN798 798DIN Special Foundation Nuts for Special Foundation Bolts According to DIN 797
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
M24 M30 M36 M42 M48 M56 M64 M72 M80 M90 M100
P Pitch
m
s
e
per 1000 units ≈ kg
3 3.5 4 4.5 5 5.5 6 6 6 6 6
30 38 45 53 60 70 80 90 100 112 125
50 60 70 80 90 100 110 120 130 145 165
65 80 92 105 118 132 145 160 170 190 220
495 980 1550 2350 3320 4250 5600 7400 9500 13800 19400

Alternative history

DIN 798 - 1972 DIN 798 - 2009
