Steel Threaded Pipe Fittings, Table 16 - Square Head Plug

BS EN 10241 (T16) - 2000

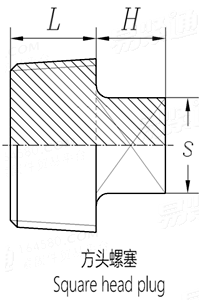

Display drawing:

Nominal Diameter
DN

100

125

150

L
S
H
For Nominal Thread Diameter ^②	(inch)/Ref.

6.5	9.7	10.1	13.2	14.5	16.8	19.1	19.1	23.4	26.7	29.8	35.8	40.1	40.1
6	9	11	13	14	17	22	27	32	37	37	46	51	60
6	6	10	10	12	12	16	16	19	19	22	25	29	32
1/8	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6

①,Plugs may be provided with a shallow concave recess in the base, so long as the essential solidity of the plug is maintained.
②,Thread:

1. Taper internal thread type Rc ( ISO 7-1[GB/T 7306.1-2000] );

2. Parallel external thread type GA or GB ( ISO 228-1[GB/T 7307-2001] );

3. Parallel internal thread type G ( ISO 228-1[GB/T 7307-2001] ).
