Steel Threaded Pipe Fittings, Table 11 - Socket and Half Socket, Equal, Type Heavy

BS EN 10241 (T11) - 2000

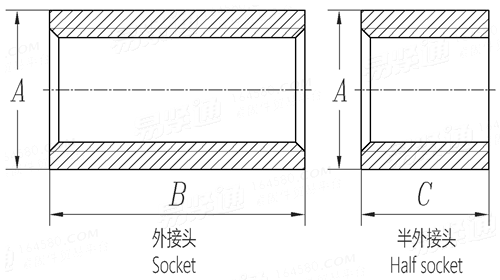

Display drawing:

Nominal Diameter
DN

100

125

150

A
B
C
For Nominal Thread Diameter ^①	(inch)/Ref.

15	18.5	22	27	32.5	39.5	49	56	68	84	98	124	151	177
19	27	28	37	39	46	51	51	60	69	75	87	96	96
8	11	12	16	19	21	25	25	28	30	35	40	44	44
1/8	1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6

①,Thread:

1. Taper internal thread type Rc ( ISO 7-1[GB/T 7306.1-2000] );

2. Parallel external thread type GA or GB ( ISO 228-1[GB/T 7307-2001] );

3. Parallel internal thread type G ( ISO 228-1[GB/T 7307-2001] ).
