Click Specification

Unit:mm

ZB /T 31030.1 - 1987

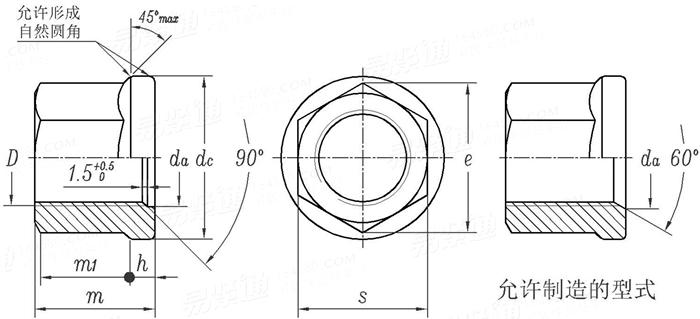

Display drawing:

汽车行业标准ZB /T31030.1 - 1987 ZB31030.1 3103
Thread Size
D
M18 M20 M22
P pitch
s max=nominal size
min
m min=nominal size
max
dc max=nominal size
min
da
h
e min
m1 min
1.5 1.5 1.5
24 27 27
23.67 26.67 26.67
22 25 28
23 26 29
30 34 34
29.38 33.38 33.38
18.5 20.5 22.5
4 5 6
26.51 29.87 29.87
12.6 14 15.4
