Click Specification

Same specifications, different dimensions for other parts.

Unit:mm

HG /T 21629 (A22) - 2021

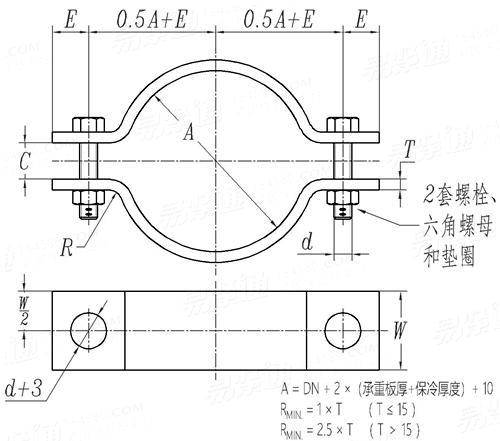

Display drawing:

化工HG /T21629 (A22) - 2021 HG21629 21629H
For Nominal Thread Diameter
M12 M12 M16 M16 M20 M24 M24 M30 M36 M36 M42 M48 M56
Allowable load/KN
A
C
E
T
W
2 2.7 3.6 4.2 7 10 14 20 28 34 45 60 72
0~100 101~150 151~200 201~225 226~250 251~350 351~400 401~450 451~550 551~700 701~900 901~1050 1051~1400
20 20 30 30 30 30 30 40 40 40 50 50 60
20 20 25 25 30 40 40 45 55 55 65 75 85
6 6 6 10 10 10 12 12 12 16 25 25 25
65 75 75 100 100 100 100 100 125 125 150 150 150
