Click Specification

Unit:mm

HG /T 21629 (A19) - 2021

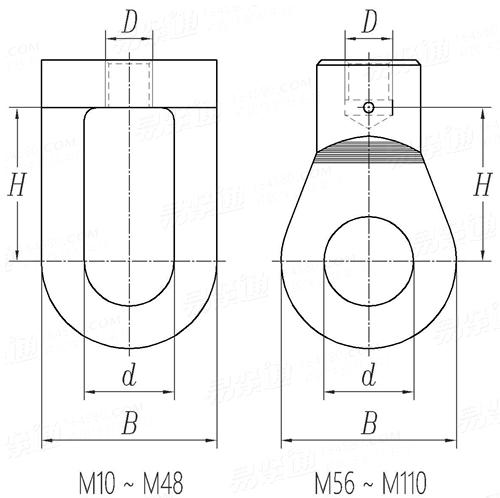

Display drawing:

化工HG /T21629 (A19) - 2021 HG21629 21629H
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Size
M10 M12 M16 M20 M24 M30 M36 M42
d
H
B
per unit≈kg
Allowable load/KN
24 24 34 38 42 52 58 70
30 45 55 65 80 90 95 105
44 44 64 74 82 104 114 130
0.09 0.11 0.37 0.58 0.81 1.63 2.19 2.82
3 5 10 17 24 39 60 84
Size
M48 M56 M64 M72 M80 M90 M100 M110
d
H
B
per unit≈kg
Allowable load/KN
70 70 78 86 96 107 117 132
140 150 165 180 190 210 230 260
125 175 190 210 240 270 290 320
8.78 13.5 16.7 22.2 29.3 45.6 63.6 87.9
123 175 230 300 380 495 620 760
