Click Specification

Unit:mm

HG /T 21629 (A2) - 2021

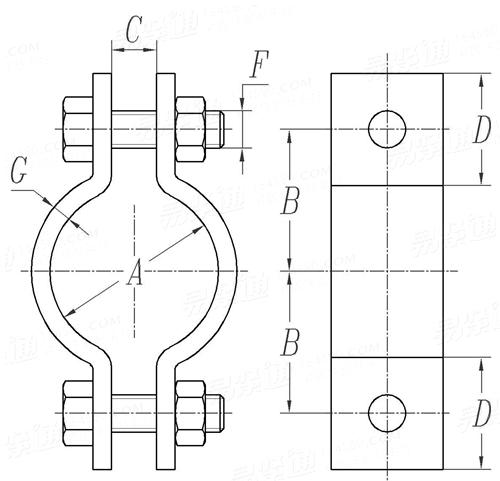

Display drawing:

化工HG /T21629 (A2) - 2021 HG21629 21629HG
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Pipe Diameter(Nominal)
15 20 25 32 40 50 65 80 90 100 125 150
A
B
C
D
F
G
per unit≈kg
25 30 37 45 51 63 79 92 105 117 143 171
28 30 34 38 41 52 60 66 73 84 97 116
12 12 12 12 12 15 15 15 15 20 20 25
30 30 30 30 30 40 40 40 40 50 50 60
M10 M10 M10 M10 M10 M12 M12 M12 M12 M16 M16 M20
5×30 5×30 5×30 5×30 5×30 6×40 6×40 6×40 6×40 8×50 8×50 10×60
0.28 0.29 0.32 0.35 0.37 0.71 0.81 0.89 0.96 1.92 2.18 3.99
Pipe Diameter(Nominal)
200 250 300 350 400 450 500 550 600 650 700 750
A
B
C
D
F
G
per unit≈kg
222 276 328 359 409 460 511 563 613 663 714 765
141 176 202 217 242 268 301 327 352 387 412 438
25 25 25 30 30 35 35 35 40 50 50 50
60 75 75 75 75 75 90 90 90 110 110 110
M20 M24 M24 M24 M24 M24 M30 M30 M30 M36 M36 M36
10×60 12×75 12×75 12×75 12×75 16×75 16×90 16×90 16×90 20×110 20×110 20×110
4.75 8.76 9.91 10.57 11.67 16.95 23.39 25.24 26.96 45.36 48.12 50.89
