Click Specification

Unit:mm

DIN 41496 - 1987

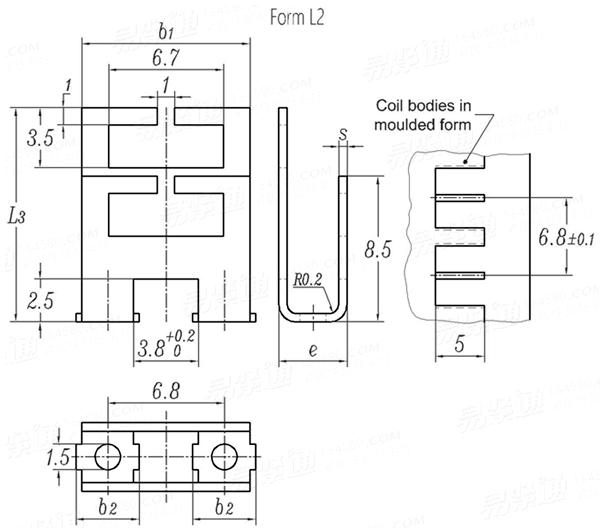

Display drawing:

德标DIN 41496 - 1987 DIN41496 41496DIN
Size
9.8
b1 max=nominal size
min
b2
e max=nominal size
min
L3
s
9.8
9.65
3.7
4
3.82
12.5
0.5
