Click Specification

Unit:mm

JB /ZQ 4782 - 2006

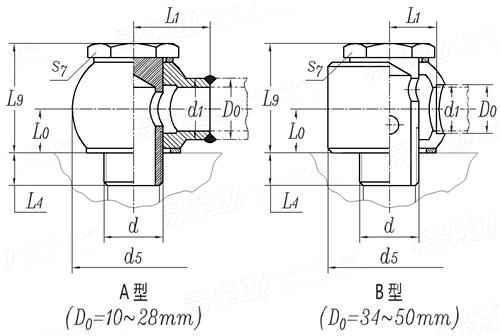

Display drawing:

机械行业JB /ZQ4782 - 2006 JB4782 4782JB
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Inside Nominal Diameter
6 8 10 15 20 25 32 40
D0
d
d1
d5
L4
L9
L0
L1
s7
per unit≈kg
10 14 18 22 28 34 42 50
M10×1 M14×1.5 M18×1.5 M22×1.5 M27×2 M33×2 M42×2 M48×2
11 16 19 22 28 34 42 50
22 28 36 46 56 64 78 90
8 10 12 14 15 16 17 19
23 29 34 43 50 66 82 94
8.5 11 13 17 20 27 34 38
15 20 25 30 35 24 30 33
17 19 24 30 36 41 55 60
0.059 0.103 0.19 0.342 0.66 1.32 2.14 3.33
