Click Specification

Unit:mm

Cheese Head Studs for Welding

JIS B 1198 - 1995

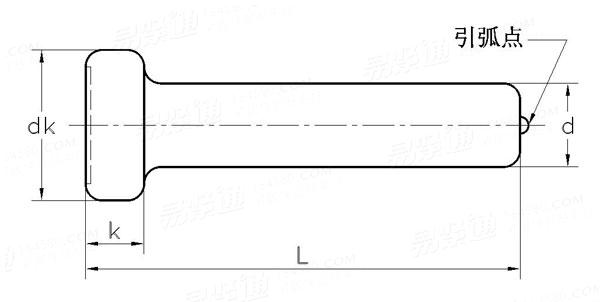

Display drawing:

日标JIS B1198 - 1995 JIS1198 1198JIS Cheese Head Studs for Welding

Nominal Diameter
d

13

16

19

22

d	max
	min
d_k	Nominal Size
	max
	min
k	min
Tensile load, KN (max)
Tensile load, KN (min)

13.3	16.3	19.4	22.4
12.7	15.7	18.6	21.6
22	29	32	35
22.4	29.4	32.4	35.4
21.6	28.6	31.6	34.6
10	10	10	10
73	111	156	209
53.1	80.4	113	152

Alternative history

JIS B 1198 - 1995 JIS B 1198 - 2011
