Hexagon Socket Set Screws With Cup Point

JIS B 1177 - 2007

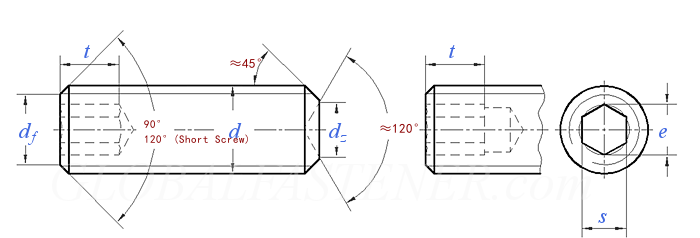

Display drawing:

日标JIS B1177 - 2007 JIS1177 1177JIS Hexagon Socket Set Screws With Cup Point
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16 M20 M24
P Pitch
dz max
min
s Nominal Size
max
min
t min
L0 Nominal Size
0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2.5 3
0.80 1.00 1.20 1.40 2.00 2.50 3.00 5.0 6.0 8.00 10.00 14.00 16.00
0.55 0.75 0.95 1.15 1.75 2.25 2.75 4.7 5.7 7.64 9.64 13.57 15.57
0.7 0.9 1.3 1.5 2 2.5 3 4 5 6 8 10 12
0.724 0.913 1.300 1.58 2.08 2.58 3.08 4.095 5.14 6.14 8.175 10.17 12.21
0.710 0.887 1.275 1.52 2.02 2.52 3.02 4.020 5.02 6.02 8.025 10.02 12.03
0.7 0.8 1.2 1.2 1.5 2 2 3 4 4.8 6.4 8 10
2 2.5 3 4 5 5 6 8 10 12 16 20 25
Weight of per 1000 steel products(≈kg)
- - - - - - - - - - - - -
①,When L ≤ L0, it is a short screw; When L>L0, it is a long screw.
