Click Specification

Same specifications, different dimensions for other parts.

Unit:mm

YJT 3036

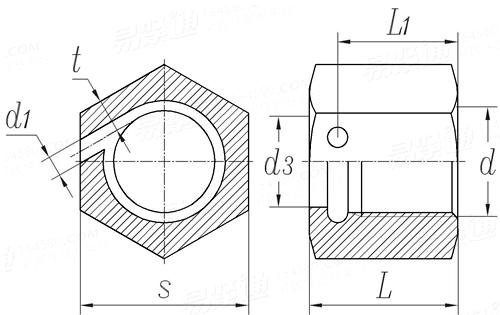

Display drawing:

企标YJT 3036 YJT3036 3036YJT
Thread Size
d
M12 M12 M14 M16 M18 M20 M22 M24
P pitch
L
L1
d3
d1
t
s
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
14.7 15.5 15.6 17.1 17.5 19 19.1 20
11 12 12.1 12.8 13.2 14.5 15 15
9.7 10 11.5 13.5 16 16.5 18.5 21
2.3 2.3 2.3 2.3 2.8 2.8 2.8 2.8
2.15 3.4 2.65 2.65 2.9 3.65 4.5 4.4
14 17 17 19 22 24 27 30
Thread Size
d
M26 M30 M36 M36 M42 M45 M52 M52
P pitch
L
L1
d3
d1
t
s
1.5 2 2 2 2 2 2 2
19 22.6 23.6 23.6 25.5 26 25.2 32.5
14.5 17.7 18.4 18.4 19.1 20.2 19.5 22.8
23 26 33 33 38.5 40 48.5 48.5
3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4
4.4 4.9 4 6.4 5.65 4.9 5.65 5.65
32 36 41 46 50 50 60 60

Suppliers

Best price if from GlobalFastener.com.
ACEI Screw Plug Inc.

  • Hu Zhijian

  • +86-13906683360

  • +86-574-87777555

  • Material: SWRCH35K, 45#, AISI304, AISI316; Specifications: M12-M52; Surface Treatment: Cr3+ white zined, Cr3+ color zined, blackened, phosphorized, zinced and nickeled, Geomet
