Click Specification

Unit:mm

Hexagon Head Self-Tapping Screws with Collar

JIS B 1126 - 1995

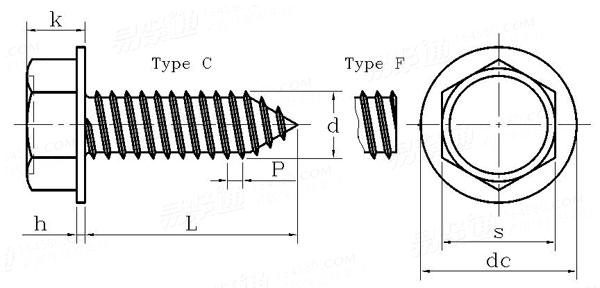

Display drawing:

日标JIS B1126 - 1995 JIS1126 1126JIS Hexagon Head Self-Tapping Screws with Collar
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
ST2.2 ST2.9 ST3.5 ST3.9 ST4.2 ST4.8 ST5.5 ST6.3 ST8
P Pitch
h min
dc max
min
k max=nominal size
min
s max=nominal size
min
0.8 1.1 1.3 1.3 1.4 1.6 1.8 1.8 2.1
0.25 0.4 0.6 0.6 0.8 0.9 1 1 1.2
4.2 6.3 8.3 8.3 8.8 10.5 11 13.5 18
3.8 5.8 7.6 7.6 8.1 9.8 10 12.2 16.7
2 2.8 3.4 3.4 4.1 4.3 5.4 5.9 7
1.7 2.5 3 3 3.6 3.8 4.8 5.3 6.4
3 4 5.5 5.5 7 8 8 10 13
2.86 3.82 5.32 5.32 6.78 7.78 7.78 9.78 12.73
Weight of per 1000 steel products(≈kg)
- - - - - - - - -

Alternative history

JIS B 1126 - 1995 JIS B 1126 - 2015 JIS B 1126 - 2022
