Click Specification

Unit:mm

Button Head Screws - Screws with Collar and Driving Feature Hexalobular Socket

DIN 34805-2 - 2018

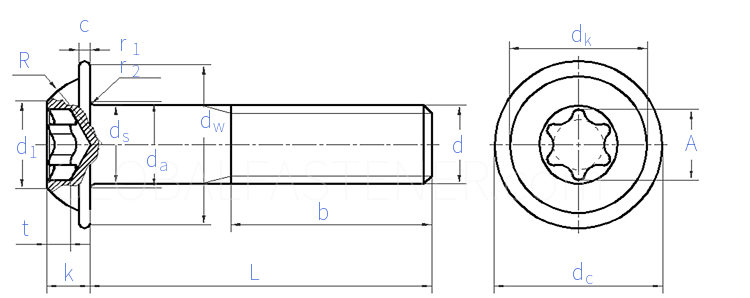

Display drawing:

德标DIN 34805-2 - 2018 DIN34805-2 34805-2D Button Head Screws - Screws with Collar and Driving Feature Hexalobular Socket

Download CAD Model

Nominal Length L Tips:seclect Nominal Length L and get Thread length.

Thread Size
d

M3

M4

M5

M6

M8

M10

M12

P	Pitch
c	max
c	min
d_a	max
d_c	max
d_c	min
d_k	max
d_k	min
d₁	Ref.
d_s	max
d_s	min
d_w	min
k	max
k	min
R	max
R	min
r₁	min
r₂	min
Socket No.
A	Ref.
t	min
t	max

0.5	0.7	0.8	1	1.25	1.5	1.75
0.7	0.8	1	1.2	1.5	2	2.4
0.55	0.65	0.8	1	1.25	1.7	2.1
3.6	4.7	5.7	6.8	9.2	11.2	13.7
6.9	9.4	11.8	13.6	17.8	21.9	26
6.32	8.82	11.1	12.9	17.1	21.06	25.16
5.5	7.4	9.2	10.1	13.6	16.7	20.1
5.2	7.04	8.84	9.67	13.17	16.27	19.58
3.5	4.9	5.6	7	9.9	11.2	14.2
3	4	5	6	8	10	12
2.86	3.82	4.82	5.82	7.78	9.78	11.73
5.69	7.94	9.99	11.61	15.3	18.95	22.64
1.8	2.45	3	3.3	4.5	5.5	6.6
1.6	2.25	2.7	3	4.2	5.2	6.24
3.5	4.6	5.6	6.2	7.6	10.1	11.8
2.5	3.4	4.4	5	6.2	8.5	10
0.1	0.2	0.2	0.25	0.4	0.4	0.6
0.3	0.4	0.45	0.5	0.7	0.7	1.1
10	20	25	30	45	50	55
2.8	3.95	4.5	5.6	7.93	8.95	11.35
0.8	1.24	1.32	1.48	2.15	2.65	3.35
0.93	1.53	1.61	1.78	2.54	3.05	3.8

Length of Thread b

Ref.

-

-

-

-

-

-

-
