Click Specification

Unit:mm

HB 6474 - 1990

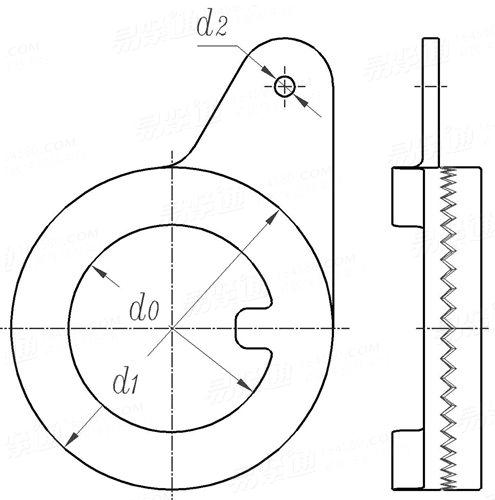

Display drawing:

航空HB 6474 - 1990 HB6474 6474HB
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
M6 M8 M10 M12 M14 M16 M18
P
d0
d1 0，+5
d2
per 1000 units≈kg
1 1.25 1.5 1.5 1.5 1.5 1.5
6.3 8.3 10.3 12.3 14.3 16.3 18.3
11 13 16 19 22 25 28
1.6 1.6 1.6 1.6 1.8 1.8 1.8
1.40 1.68 2.96 3.98 5.80 7.84 10.23
