Click Specification

Weld-on Reducing Nipples

ISO 8434-1 (WDRDNP) - 2018

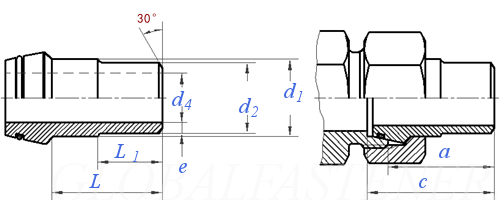

Display drawing:

Tube outer diameter

8
×6×L

10
×8×L

12
×10×L

18
×15×L

22
×15×L

22
×18×L

28
×15×L

28
×18×L

28
×22×L

35
×15×L

35
×18×L

35
×22×L

35
×28×L

42
×15×L

Series
d₁	±0.1
d₂	±0.1
d₄	Nominal Size
	max
	min
e
L	±0.2
c	±1
a	±1
L₁	±0.2

L	L	L	L	L	L	L	L	L	L	L	L	L	L
8	10	12	18	22	22	28	28	28	35	35	35	35	42
6	8	10	15	15	18	15	18	22	15	18	22	28	15
3	5	7	12	12	15	12	15	18	12	15	18	24	12
3.1	5.1	7.2	12.2	12.2	15.2	12.2	15.2	18.2	12.2	15.2	18.2	24.2	12.2
2.9	4.9	6.8	11.8	11.8	14.8	11.8	14.8	17.8	11.8	14.8	17.8	23.8	11.8
1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	2	1.5	1.5	2	2	1.5
19	20	20	23	24.5	24.5	27.5	27.5	27.5	30.5	30.5	30.5	30.5	30.5
31.5	33.5	33.5	37	39.5	39.5	42.5	42.5	42.5	49.5	49.5	49.5	49.5	50
24.5	26	26	29.5	32	32	35	35	35	39	39	39	39	39
12	12	14	16	18	18	20	20	20	25	25	25	25	28

Tube outer diameter

42
×18×L

42
×22×L

42
×28×L

42
×35×L

8
×6×S

10
×8×S

10
×6×S

12
×10×S

12
×8×S

12
×6×S

16
×12×S

16
×10×S

16
×8×S

16
×6×S

Series
d₁	±0.1
d₂	±0.1
d₄	Nominal Size
	max
	min
e
L	±0.2
c	±1
a	±1
L₁	±0.2

L	L	L	L	S	S	S	S	S	S	S	S	S	S
42	42	42	42	8	10	10	12	12	12	16	16	16	16
18	22	28	35	6	8	6	10	8	6	12	10	8	6
15	18	24	31	2	3	2	4	3	2	8	6	5	3
15.2	18.2	24.2	31.3	2.1	3.1	2.1	4.1	3.1	2.1	8.2	6.1	5.1	3.1
14.8	17.8	23.8	30.7	1.9	2.9	1.9	3.9	2.9	1.9	7.8	5.9	4.9	2.9
1.5	2	2	2	2	2.5	2	3	2.5	2	2	2	1.5	1.5
30.5	30.5	30.5	30.5	19	20	20	20	20	20	26	26	26	26
50	50	50	50	32	33.5	33.5	33.5	33.5	33.5	40.5	40.5	40.5	40.5
39	39	39	39	25	26	26	26	26	26	32	32	32	32
28	28	28	28	12	12	12	14	14	14	15	15	15	15

Tube outer diameter

20
×16×S

20
×12×S

20
×10×S

20
×8×S

20
×6×S

25
×20×S

25
×16×S

25
×12×S

25
×10×S

25
×8×S

25
×6×S

30
×25×S

30
×20×S

30
×16×S

Series
d₁	±0.1
d₂	±0.1
d₄	Nominal Size
	max
	min
e
L	±0.2
c	±1
a	±1
L₁	±0.2

S	S	S	S	S	S	S	S	S	S	S	S	S	S
20	20	20	20	20	25	25	25	25	25	25	30	30	30
16	12	10	8	6	20	16	12	10	8	6	25	20	16
10	8	6	5	3	13	10	8	6	5	3	20	16	12
10.2	8.2	6.1	5.1	3.1	13.2	10.2	8.2	6.1	5.1	3.1	20.2	16.2	12.2
9.8	7.8	5.9	4.9	2.9	12.8	9.8	7.8	5.9	4.9	2.9	19.8	15.8	11.8
3	2	2	1.5	1.5	3.5	3	2	2	1.5	1.5	2.5	2	2
28.5	28.5	28.5	28.5	28.5	33.5	33.5	33.5	33.5	33.5	33.5	35.5	35.5	35.5
47	47	47	47	47	53.5	53.5	53.5	53.5	53.5	53.5	57.5	57.5	57.5
36.5	36.5	36.5	36.5	36.5	41.5	41.5	41.5	41.5	41.5	41.5	44	44	44
17	17	17	17	17	20	20	20	20	20	20	22	22	22

Tube outer diameter

30
×12×S

30
×10×S

30
×8×S

30
×6×S

38
×30×S

38
×25×S

38
×20×S

38
×16×S

38
×12×S

38
×10×S

38
×8×S

38
×6×S

Series
d₁	±0.1
d₂	±0.1
d₄	Nominal Size
	max
	min
e
L	±0.2
c	±1
a	±1
L₁	±0.2

S	S	S	S	S	S	S	S	S	S	S	S
30	30	30	30	38	38	38	38	38	38	38	38
12	10	8	6	30	25	20	16	12	10	8	6
9	7	5	4	24	20	16	12	9	7	5	4
9.2	7.2	5.1	4.1	24.2	20.2	16.2	12.2	9.2	7.2	5.1	4.1
8.8	6.8	4.9	3.9	23.8	19.8	15.8	11.8	8.8	6.8	4.9	3.9
1.5	1.5	1.5	1	3	2.5	2	2	1.5	1.5	1.5	1
35.5	35.5	35.5	35.5	39.5	39.5	39.5	39.5	39.5	39.5	39.5	39.5
57.5	57.5	57.5	57.5	64.5	64.5	64.5	64.5	64.5	64.5	64.5	64.5
44	44	44	44	48.5	48.5	48.5	48.5	48.5	48.5	48.5	48.5
22	22	22	22	26	26	26	26	26	26	26	26
