Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Thread and thread ends for wood screws

DIN 7998 - 1975

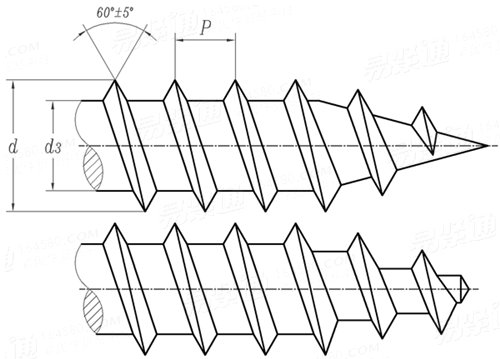

Display drawing:

德标DIN 7998 - 1975 DIN7998 7998DIN Thread and thread ends for wood screws
Thread Size
d
1.6 2 2.5 3 3.5 4 4.5 5
d h15 max=nominal size
min
d3 h15 max=nominal size
min
P nominal size
min
max
1.6 2 2.5 3 3.5 4 4.5 5
1.20 1.60 2.10 2.60 3.02 3.52 4.02 4.52
1.1 1.4 1.7 2.1 2.4 2.8 3.1 3.5
0.7 1.00 1.30 1.70 2.00 2.40 2.62 3.02
0.7 0.9 1.1 1.35 1.6 1.8 2 2.2
0.63 0.81 0.99 1.21 1.44 1.62 1.80 1.98
0.77 0.99 1.21 1.49 1.76 1.98 2.20 2.42
Thread Size
d
(5.5) 6 (7) 8 10 12 16 20
d h15 max=nominal size
min
d3 h15 max=nominal size
min
P nominal size
min
max
5.5 6 7 8 10 12 16 20
5.02 5.52 6.42 7.42 9.42 11.30 15.30 19.16
3.8 4.2 4.9 5.6 7 9 12 15
3.32 3.72 4.42 5.12 6.42 8.42 11.30 14.30
2.4 2.6 3.2 3.6 4.5 5 6 7
2.16 2.34 2.88 3.24 4.05 4.50 5.40 6.30
2.64 2.86 3.52 3.96 4.95 5.50 6.60 7.70
①,Parenthesized sizes should be avoided if possible.
