Click Specification

(Non-preferred) dimensions in parentheses.

Same specifications, different dimensions for other parts.

Unit:mm

Self-locking, Two Lug Anchor Nuts, with MJ Thread

HB 8058 - 2002

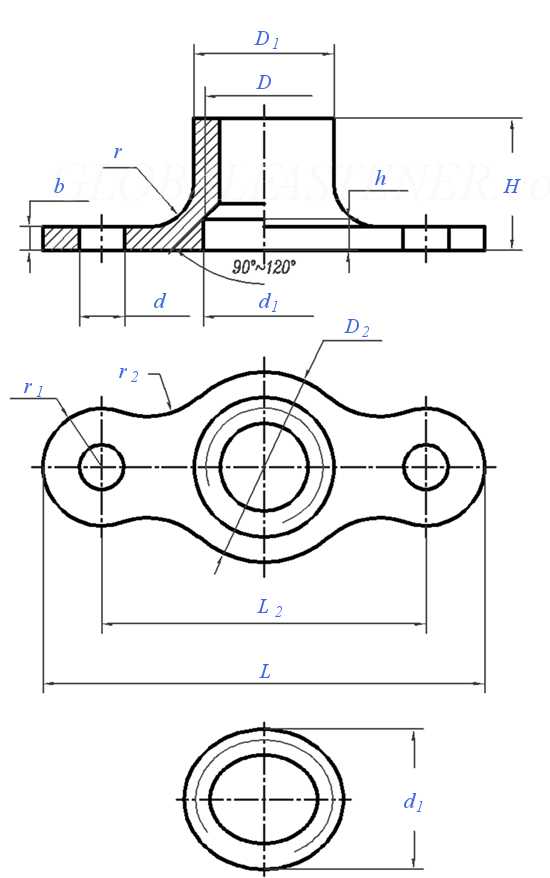

Display drawing:

航空HB 8058 - 2002 HB8058 8058HB Self-locking, Two Lug Anchor Nuts, with MJ Thread
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Diameter
D
MJ3 MJ4 MJ5 MJ6 MJ8 (MJ8) MJ10 (MJ10)
P Pitch
D1 max=nominal size
min
D2 Nominal Size
max
min
d min=nominal size
max
d1 min=nominal size
max
H min=nominal size
max
h min=nominal size
max
L Ref.
L2
b Nominal Size
max
min
r max=nominal size
min
r1 Nominal Size
max
min
r2 Nominal Size
max
min
per 1000 units≈kg
0.5 0.7 0.8 1 1 1.25 1.25 1.5
4 5.4 6.4 7.4 9.5 9.5 12 12
3.925 5.325 6.31 6.31 9.41 9.41 11.89 11.89
7 7 9 10 13 13 15.5 15.5
7.2 7.2 9.2 10.2 13.2 13.2 15.7 15.7
6.8 6.8 8.8 9.8 12.8 12.8 15.3 15.3
2.6 2.6 2.6 2.6 3.1 3.1 3.1 3.1
2.72 2.72 2.72 2.72 3.22 3.22 3.22 3.22
3.2 4.2 5.2 6.2 8.2 8.2 10.2 10.2
3.5 4.5 5.5 6.56 8.56 8.56 10.63 10.63
4 5 6 7 9 9 11 11
4.3 5.3 6.3 7.3 9.3 9.3 11.3 11.3
1 1.15 1.3 1.7 2.1 2.1 2.5 2.5
1.2 1.35 1.5 1.9 2.3 2.3 2.7 2.7
18 23 23 25 30 30 35 35
12 16 16 18 22 22 26 26
0.8 0.8 0.8 0.9 1.6 1.6 2 2
1 1 1 1.1 1.8 1.8 2.2 2.2
0.7 0.7 0.7 0.8 1.5 1.5 1.9 1.9
1.2 2 2 2 3 3 3.5 3.5
0.9 1.7 1.7 1.7 2.7 2.7 3.2 3.2
3 3.5 3.5 3.5 4 4 4.5 4.5
3.2 3.7 3.7 3.7 4.2 4.2 4.7 4.7
2.8 3.3 3.3 3.3 3.8 3.8 4.3 4.3
3 3 4 4 5 5 5 5
3.2 3.2 4.2 4.2 5.2 5.2 5.2 5.2
2.8 2.8 3.8 3.8 4.8 4.8 4.8 4.8
0.68 1.18 1.42 2 5.06 5.06 8.35 8.35
