100° Countersunk Head Bolts，Shank Tolerance f9

GJB 3371 (/61) - 1998

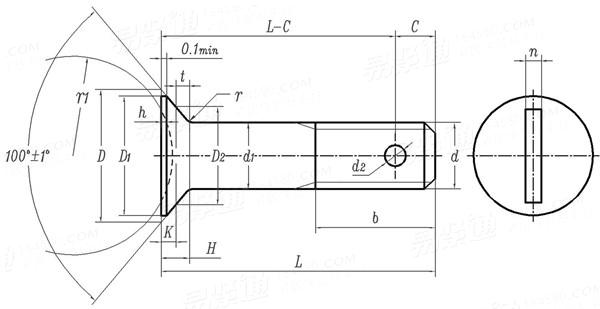

Display drawing:

军标GJB 3371 (/61) - 1998 GJB3371 3371GJB 100° Countersunk Head Bolts，Shank Tolerance f9
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
M5 M6 M8 M10 M12 M14 M16 M18 M20
P Pitch
d1 f9 nominal size
max
min
H ref.
D ref.
D1 min
D2
b ref.
k 0，-0.2
r 0，-0.2
n H12 min=nominal size
max
t h14 max=nominal size
min
d2 H13 min=nominal size
max
r1
C ref.
0.8 1 1.25 1.5 1.5 1.5 1.5 1.5 1.5
5 6 8 10 12 14 16 18 20
4.99 5.99 7.987 9.987 11.984 13.984 15.984 17.984 19.98
4.96 5.96 7.951 9.951 11.941 13.941 15.941 17.941 19.928
2.11 2.53 3.38 4.23 5.07 5.92 6.77 7.61 8.46
10 12 16 20 24 28 32 36 40
9 10.8 14.8 18.8 22.8 26.8 30.8 34.8 38.8
7.71 9 12.21 15.43 18 20.57 24.43 25.71 28.92
8.5 10 11.5 15 17 19 21 23 25
0.96 1.26 1.6 1.93 2.53 3.14 3.2 4.35 4.68
0.5 0.7 0.7 0.8 0.9 1.1 1.1 1.3 1.3
1.2 1.5 1.5 2 2.5 2.5 2.5 3 3
1.3 1.6 1.6 2.1 2.6 2.6 2.6 3.1 3.1
1 1.5 2 2.5 2.5 3 3 3 3
0.75 1.25 1.75 2.25 2.25 2.75 2.75 2.75 2.75
1.6 1.6 2 2.5 2.5 2.5 3.2 3.2 3.2
1.74 1.74 2.14 2.64 2.64 2.64 3.38 3.38 3.38
8 10 12.5 15 17.5 20 22.5 25 25
3 3 4 4 4.5 4.5 5 5 5.5
