YJT 19099 (GN 1024)

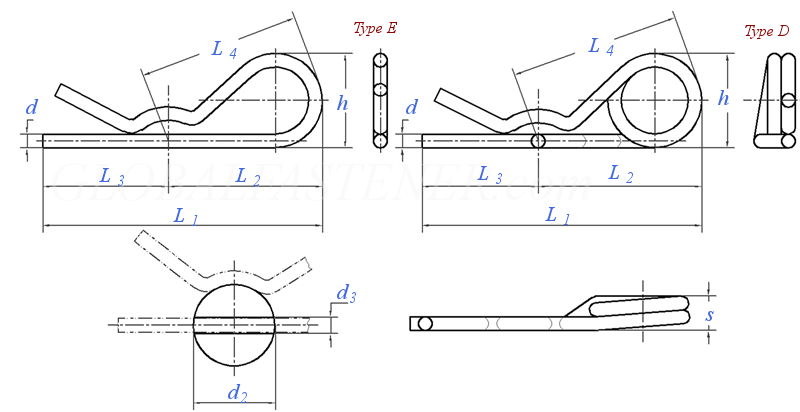

Display drawing:

企标YJT 19099 (GN 1024) YJT19099 19099YJT
Download CAD Model
企标YJT 19099 (GN 1024) YJT19099 19099YJT
Download CAD Model
Nominal Diameter
d
1.5 2 3 4 5 6 7
d2 Type E min
max
Type D min
max
d3 Type E
Type D
h Type E
Type D
L1 Type E
Type D
L2 Type E
Type D
L3 Type E
Type D
L4 Type E
Type D
s Type D
载荷 ≈N, 安装, E型
载荷 ≈N, 安装, D型
载荷 ≈N，拆卸, E型
载荷 ≈N，拆卸, D型
载荷 ≈N，用于螺栓Φ, E型
载荷 ≈N，用于螺栓Φ, D型
7 9 10 16 20 28 -
12 14 16 20 28 40 -
- 8 14 17 18 24 26
- 14 20 24 30 36 40
2 2.5 3.5 4.5 5.5 6.5 -
- 2.5 3.5 4.5 5.5 6.5 7.5
9 13 23 27 32 42 -
- 14 22 32 35 41 42
45 57 72 74 102 126 -
- 56 73 94 110 142 152
25 32 42 44 57 73 -
- 31 43 58 70 85 92
20 25 30 30 45 53 -
- 25 30 36 40 57 60
25 34 44 48 61 77 -
- 33 47 62 73 90 96
- 5.5 8 10.5 13.5 16 19
9 14 55 210 280 240 -
- 10 35 50 100 190 350
8 9 40 170 210 150 -
- 9 28 35 95 125 210
8 12 16 20 25 30 -
- 12 16 20 25 30 40
