Click Specification

Unit:mm

Guide Unit For Stamping Dies - Bushings

GB /T 2861.9 - 2008

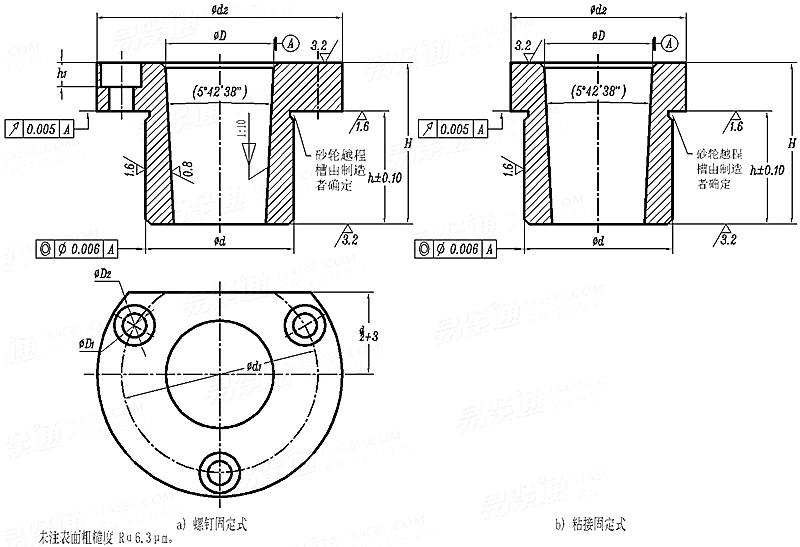

Display drawing:

国标GB /T2861.9 - 2008 GB2861.9 2861.9GB Guide Unit For Stamping Dies - Bushings
Nominal Diameter
D
20 20 22 22 22 22 25 25 25 25 28 28 28 28
H
d Nominal Size
螺钉固定 max
min
粘接固定 max
min
d1
d2 螺钉固定
粘接固定
D1
D2
h
h1
30 40 30 35 40 45 35 40 45 50 40 45 50 55
32 32 35 35 35 35 38 38 38 38 42 42 42 42
32.02 32.02 35.02 35.02 35.02 35.02 38.02 38.02 38.02 38.02 42.02 42.02 42.02 42.02
32.009 32.009 35.009 35.009 35.009 35.009 38.009 38.009 38.009 38.009 42.009 42.009 42.009 42.009
31.92 31.92 34.92 34.92 34.92 34.92 37.92 37.92 37.92 37.92 41.92 41.92 41.92 41.92
31.916 31.916 34.916 34.916 34.916 34.916 37.916 37.916 37.916 37.916 41.916 41.916 41.916 41.916
42 42 45 45 45 45 48 48 48 48 52 52 52 52
52 52 55 55 55 55 58 58 58 58 62 62 62 62
38 38 42 42 42 42 45 45 45 45 50 50 50 50
5.5 5.5 6.6 6.6 6.6 6.6 6.6 6.6 6.6 6.6 6.6 6.6 6.6 6.6
10 10 12 12 12 12 12 12 12 12 12 12 12 12
20 30 18 23 28 33 23 28 33 38 28 33 38 43
6 6 7 7 7 7 7 7 7 7 7 7 7 7
Nominal Diameter
D
32 32 32 32 35 35 35 35 40 40 40 40 45 45
H
d Nominal Size
螺钉固定 max
min
粘接固定 max
min
d1
d2 螺钉固定
粘接固定
D1
D2
h
h1
45 50 55 60 50 55 60 65 55 60 65 70 60 65
45 45 45 45 50 50 50 50 55 55 55 55 60 60
45.02 45.02 45.02 45.02 50.02 50.02 50.02 50.02 55.024 55.024 55.024 55.024 60.024 60.024
45.009 45.009 45.009 45.009 50.009 50.009 50.009 50.009 55.011 55.011 55.011 55.011 60.011 60.011
44.92 44.92 44.92 44.92 49.92 49.92 49.92 49.92 54.9 54.9 54.9 54.9 59.9 59.9
44.916 44.916 44.916 44.916 49.916 49.916 49.916 49.916 54.895 54.895 54.895 54.895 59.895 59.895
55 55 55 55 60 60 60 60 73 73 73 73 78 78
65 65 65 65 70 70 70 70 91 91 91 91 96 96
55 55 55 55 60 60 60 60 65 65 65 65 70 70
6.6 6.6 6.6 6.6 6.6 6.6 6.6 6.6 9 9 9 9 9 9
12 12 12 12 12 12 12 12 15 15 15 15 15 15
33 38 43 48 38 43 48 53 37 42 47 52 42 47
7 7 7 7 7 7 7 7 9 9 9 9 9 9
Nominal Diameter
D
45 45 50 50 50 50 50 55 55 55 55 55 60 60
H
d Nominal Size
螺钉固定 max
min
粘接固定 max
min
d1
d2 螺钉固定
粘接固定
D1
D2
h
h1
70 75 60 65 70 75 80 65 70 75 80 90 70 90
60 60 65 65 65 65 65 70 70 70 70 70 76 76
60.024 60.024 65.024 65.024 65.024 65.024 65.024 70.024 70.024 70.024 70.024 70.024 76.024 76.024
60.011 60.011 65.011 65.011 65.011 65.011 65.011 70.011 70.011 70.011 70.011 70.011 76.011 76.011
59.9 59.9 64.9 64.9 64.9 64.9 64.9 69.9 69.9 69.9 69.9 69.9 75.9 75.9
59.895 59.895 64.895 64.895 64.895 64.895 64.895 69.895 69.895 69.895 69.895 69.895 75.895 75.895
78 78 82 82 82 82 82 94 94 94 94 94 100 100
96 96 100 100 100 100 100 114 114 114 114 114 120 120
70 70 75 75 75 75 75 82 82 82 82 82 90 90
9 9 9 9 9 9 9 11 11 11 11 11 11 11
15 15 15 15 15 15 15 18 18 18 18 18 18 18
52 57 42 47 52 57 62 47 52 57 62 72 52 72
9 9 9 9 9 9 9 11 11 11 11 11 11 11
