Click Specification

Unit:mm

Lubricating Nippies Cupped， Type D

DIN 3405 - 1986

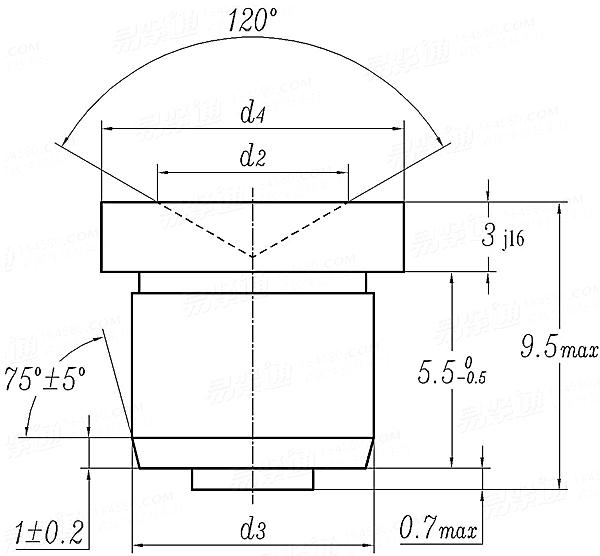

Display drawing:

德标DIN 3405 - 1986 DIN3405 3405DIN Lubricating Nippies Cupped， Type D
Size
6 8
d3 max=nominal size
min
d2 Nominal Size
max
min
d4 max=nominal size
min
Recommend Hole Size min=nominal size
max
6.1 8.1
6.05 8.05
6 8
6.5 8.5
5.5 7.5
8 10
7.91 9.91
5.9 7.9
5.975 7.99
