Click Specification

Unit:mm

24° Cone Connectors - Angle Swivel Screw Connector

Q 817B

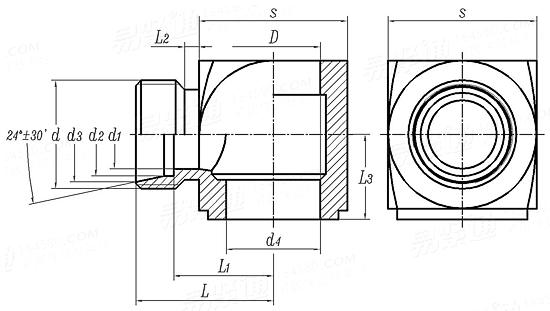

Display drawing:

汽标代号Q 817B Q817B 817BQ 24° Cone Connectors - Angle Swivel Screw Connector
PIPE OUTSIDE DIAMETER
DW
6 8 10 12 14 16 18 22 28 35
Maximum working pressure[/MPa]
D
d
d1 Ref.
d2 Nominal Size
min
max
d3 min=nominal size
max
d4 min=nominal size
max
L Nominal Size
L1 min=nominal size
L2 min=nominal size
max
L3 Nominal Size
s
25 25 25 25 25 25 16 16 10 10
12.7 14.2 16.5 20.3 22.6 24.1 30 34 41 49
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M24x1.5 M26x1.5 M30x2 M36x2 M45x2
4 6 8 10 11 14 15 19 24 30
6.0 8.0 10.0 12.0 14.0 16.0 18.0 22.0 28.0 35.3
6.140 8.150 10.150 12.150 14.150 16.150 18.150 22.160 28.160 35.300
6.215 8.240 10.240 12.260 14.260 16.260 18.260 22.290 28.290 35.400
8.1 10.1 12.3 14.3 16.3 18.3 20.3 24.3 30.3 38.0
8.2 10.2 12.4 14.4 16.4 18.4 20.4 24.4 30.4 38.1
10 12 14 16 18 20 22 26 33 42
10.022 12.027 14.027 16.027 18.027 20.033 22.033 26.033 33.039 42.039
18.5 19.5 22 24.5 26 28 30 34.5 37 43.5
11.5 12.5 15 17.5 19 20.5 22.5 27 29.5 33
3 3 3 3 3 3 3 4 4 4
3.3 3.3 3.3 3.3 3.3 3.3 3.3 4.3 4.3 4.3
10.0 11.5 13.0 15.5 17.5 18.5 21.0 23.5 26.0 30.5
17 19 22 27 30 32 36 41 46 55
