U-bolt, for Cast Iron Pipe

HG /T 21629 (A1-3) - 1999

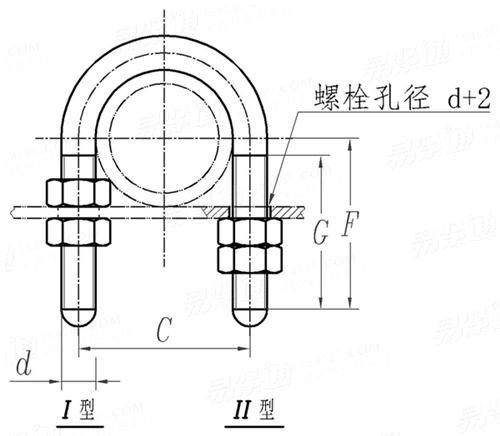

Display drawing:

化工HG /T21629 (A1-3) - 1999 HG21629 21629 U-bolt, for Cast Iron Pipe
Download CAD Model*

 *Models with different eras.

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Pipe Diameter(Nominal)
50 65 80 100 125 150 200 250 300 350 400 450 500 600
350℃ Maximum load (N)
d
C
F
G
per 100 units ≈ kg
7460 10990 10990 10990 20600 20600 20600 32180 46300 46300 46300 46300 46300 46300
M10 M12 M12 M12 M16 M16 M16 M20 M24 M24 M24 M24 M24 M24
77 96 112 133 164 190 242 298 355 407 457 509 561 665
65 75 85 95 115 130 155 185 220 245 270 295 325 375
45 50 50 50 55 55 55 65 70 70 70 70 70 70
20 34 37 42 91 102 123 231 399 446 491 538 590 686
