Click Specification

Unit:mm

U-bolt, Metric Series

HG /T 21629 (A1-1) - 1999

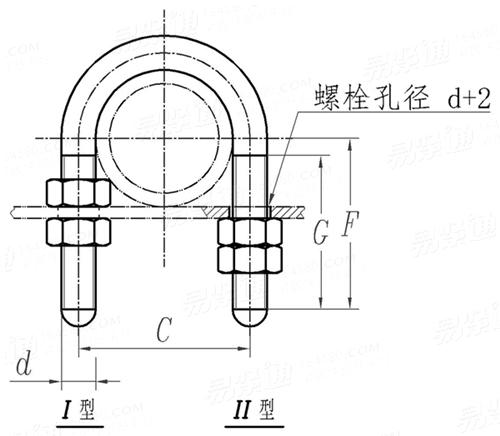

Display drawing:

化工HG /T21629 (A1-1) - 1999 HG21629 21629 U-bolt, Metric Series
Download CAD Model*

 *Models with different eras.

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Pipe Diameter(Nominal)
15 20 25 32 40 50 65 80 100 125
350℃ Maximum load (N) ④
d
C
F
G
per 100 units ≈ kg
4710 4710 4710 7460 7460 7460 10990 10990 10990 20600
M8 M8 M8 M10 M10 M10 M12 M12 M12 M16
28 35 42 50 57 69 91 104 123 153
35 40 45 50 55 60 75 80 90 110
35 38 40 45 45 45 55 55 55 70
7 8 9 16 17 19 33 35 40 86
Pipe Diameter(Nominal)
150 200 250 300 350 400 450 500 600
350℃ Maximum load (N) ④
d
C
F
G
per 100 units ≈ kg
20600 20600 32180 46300 46300 46300 46300 46300 46300
M16 M16 M20 M24 M24 M24 M24 M24 M24
179 239 297 354 406 455 509 559 659
125 155 185 220 245 270 300 325 375
70 70 80 90 90 90 90 90 90
98 122 231 398 445 490 542 588 679
