Hexagon Socket Flat Countersunk Head Cap Screws [Table 8] (ASTM F835 / F879)

ASME B 18.3 - 2012

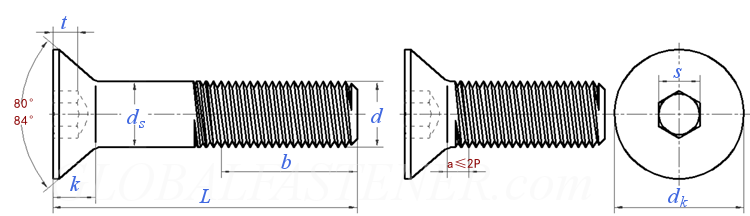

Display drawing:

美标ASME B18.3 - 2012 ASME18.3 18.3ASME Hexagon Socket Flat Countersunk Head Cap Screws [Table 8] (ASTM F835 / F879)
Nominal Diameter
d
0# 1# 2# 3# 4# 5# 6# 8# 10# 12# 1/4 5/16
d Nominal Diameter
PP UNC
UNF
UNEF
ds max
min
dk max
min
k Ref
s Nominal Size
Nominal Size
t min
b min
α ±2°
0.06 0.073 0.086 0.099 0.112 0.125 0.138 0.164 0.19 0.2158 0.25 0.3125
- 64 56 48 40 40 32 32 24 24 20 18
80 72 64 56 48 44 40 36 32 28 28 24
- - - - - - - - - 32 32 32
0.06 0.073 0.086 0.099 0.112 0.125 0.138 0.164 0.19 0.2158 0.25 0.3125
0.0568 0.0695 0.0822 0.0949 0.1075 0.1202 0.1329 0.1585 0.184 0.2102 0.2435 0.3053
0.138 0.168 0.197 0.226 0.255 0.281 0.307 0.359 0.411 0.45 0.531 0.656
0.117 0.143 0.168 0.193 0.218 0.24 0.263 0.311 0.359 0.41 0.48 0.6
0.044 0.054 0.064 0.073 0.083 0.09 0.097 0.112 0.127 0.135 0.161 0.198
- - - 1/16 1/16 5/64 5/64 3/32 1/8 1/8 5/32 3/16
0.035 0.05 0.05 0.062 0.062 0.078 0.078 0.094 0.125 0.125 0.156 0.188
0.025 0.031 0.038 0.044 0.055 0.061 0.066 0.076 0.087 0.094 0.111 0.135
0.5 0.62 0.62 0.62 0.75 0.75 0.75 0.88 0.88 0.88 1 1.12
82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82°
Nominal Diameter
d
3/8 7/16 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
d Nominal Diameter
PP UNC
UNF
UNEF
ds max
min
dk max
min
k Ref
s Nominal Size
Nominal Size
t min
b min
α ±2°
0.375 0.4375 0.5 0.625 0.75 0.875 1 1.125 1.25 1.375 1.5
16 14 13 11 10 9 8 7 7 6 6
24 20 20 18 16 14 12 12 12 12 12
32 28 28 24 20 20 20 18 18 18 18
0.375 0.4375 0.5 0.625 0.75 0.875 1 1.125 1.25 1.375 1.5
0.3678 0.4294 0.4919 0.6163 0.7406 0.8647 0.9886 1.1086 1.2336 1.3568 1.4818
0.781 0.844 0.938 1.188 1.438 1.688 1.938 2.188 2.438 2.688 2.938
0.72 0.781 0.872 1.112 1.355 1.604 1.841 2.079 2.316 2.553 2.791
0.234 0.234 0.251 0.324 0.396 0.468 0.54 0.611 0.683 0.755 0.827
7/32 1/4 5/16 3/8 1/2 9/16 5/8 3/4 7/8 7/8 1
0.219 0.25 0.312 0.375 0.5 0.562 0.625 0.75 0.875 0.875 1
0.159 0.159 0.172 0.22 0.22 0.248 0.297 0.325 0.358 0.402 0.435
1.25 1.38 1.5 1.75 2 2.25 2.5 2.81 3.12 3.44 3.75
82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82°
①,Material
a、Alloy steel shall conform in all respects to ASTM F835
b、Corrosion-resistant steel shall conform in all respects to ASTM F879
