Cross Recessed Raised Cheese Head Screws

DIN 7985 - 1986

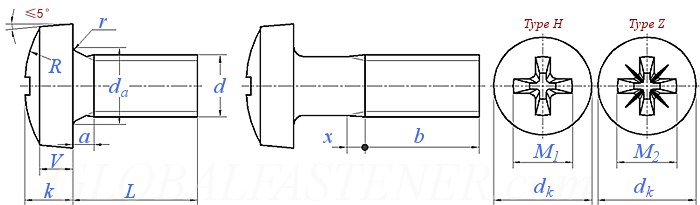

Display drawing:

Download CAD Model^*

^*Models with different eras.

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs

Default density g/cm³

Nominal Length L Tips:seclect Nominal Length L and get Weight .

Screw Thread
d

M1.6

M2.5

(M3.5)

M10

P	Pitch
a	max
b	tol.（+2P，0）
d_a	max
d_k	max=nominal size
	min
k	Nominal Size
	max
	min
r	max
R	≈
V	≈
x	max
Socket No.
M₁	≈
M₂	≈
Penetration depth	Cross recess, Type H	min
		max
	Cross recess, Type Z	min
		max

0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
0.7	0.8	0.9	1	1.2	1.4	1.6	2	2.5	3
15	16	18	19	20	22	25	28	34	40
2.1	2.6	3.1	3.6	4.1	4.7	5.7	6.8	9.2	11.2
3.2	4	5	6	7	8	10	12	16	20
2.9	3.7	4.7	5.7	6.64	7.64	9.64	11.57	15.57	19.48
1.3	1.6	2	2.4	2.7	3.1	3.8	4.6	6	7.5
1.42	1.72	2.12	2.52	2.82	3.25	3.95	4.75	6.15	7.68
1.18	1.48	1.88	2.28	2.58	2.95	3.65	4.45	5.85	7.32
0.1	0.1	0.1	0.1	0.2	0.2	0.2	0.25	0.4	0.4
3	4	5	6	7	8	10	12	16	20
0.8	1.1	1.3	1.6	1.9	2	2.5	3	3.7	4.8
0.9	1	1.1	1.25	1.5	1.75	2	2.5	3.2	3.8
0	1	1	1	2	2	2	3	4	4
1.8	2.5	2.7	3.1	4.2	4.6	5.3	6.8	9	10.2
1.8	2.4	2.6	3	4	4.3	5	6.7	8.8	9.9
0.72	1.1	1.3	1.7	1.74	2.04	2.77	3.03	4.18	5.38
1.02	1.4	1.6	2	2.24	2.54	3.27	3.53	4.68	5.88
0.92	1.1	1.27	1.68	1.65	1.9	2.64	3.02	4.06	5.23
1.17	1.35	1.52	1.93	2.11	2.36	3.1	3.48	4.52	5.69

Weight of per 1000 steel products(≈kg)

Alternative history

DIN 7985 - 1986 DIN 7985 - 1990 DIN EN ISO 7045 - 2011
