Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

High-strength Structural Bolting Assemblies for Preloading - Part 3: System HR — Hexagon Bolt

EN 14399-3 (Bolt) - 2015

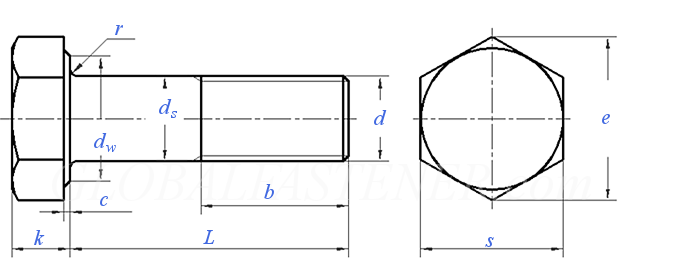

Display drawing:

欧标EN 14399-3 (Bolt) - 2015 EN14399-3 143 High-strength Structural Bolting Assemblies for Preloading - Part 3: System HR — Hexagon Bolt
Download CAD Model
Nominal Length L Tips:seclect Nominal Length L and get Thread length.
Thread Size
d
M12 (M14) M16 (M18) M20 M22 M24 M27 M30 M36
P Pitch
b Ref. L≤125
125＜L≤200
200＜L
c max
min
ds max
min
dw min
e min
k max
min
r min
s max
min
1.75 2 2 2.5 2.5 2.5 3 3 3.5 4
30 34 38 42 46 50 54 60 66 78
/ 40 44 48 52 56 60 66 72 84
/ / / / 65 69 73 79 85 97
0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
12.7 14.7 16.7 18.7 20.84 22.84 24.84 27.84 30.84 37
11.3 13.3 15.3 17.3 19.16 21.16 23.16 26.16 29.16 35
20.1 22 24.9 27.7 29.5 33.3 38 42.8 46.6 55.9
23.91 26.17 29.56 32.95 35.03 39.55 45.2 50.85 55.37 66.44
7.95 9.25 10.75 12.4 13.4 14.9 15.9 17.9 19.75 23.55
7.05 8.35 9.25 10.6 11.6 13.1 14.1 16.1 17.65 21.45
1.2 1.2 1.2 1.5 1.5 1.5 1.5 2.0 2.0 2.0
22 24 27 30 32 36 41 46 50 60
21.16 23.16 26.16 29.16 31 35 40 45 49 58.8
Length of Thread b
- - - - - - - - - -

Alternative history

EN 14399-3Bolt - 2015
