Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Slotted Cap Stan Screws

GB /T 832 - 1988

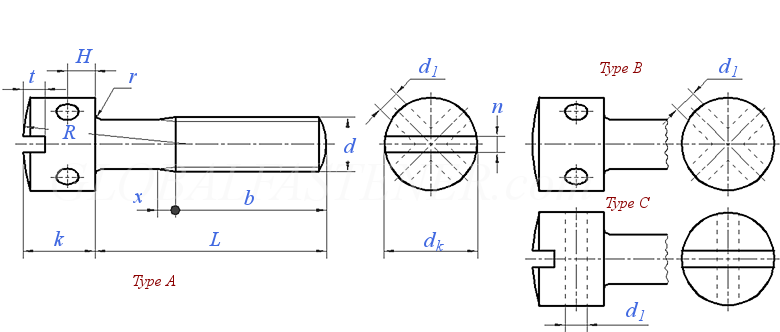

Display drawing:

国标GB /T832 - 1988 GB832 832GB Slotted Cap Stan Screws
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
P pitch
dk max
min
k max
min
n Nominal Size
min
max
t min
d1 max
min
H Nominal Size
min
max
r min
R ≈
b thread length
0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5
3 3.5 4.2 5 7 8.5 10 12.5 15
2.7 3.2 3.9 4.7 6.64 8.14 9.64 12.07 14.57
2.6 3 3.6 4 5 6.5 8 10 12.5
2.35 2.75 3.3 3.5 4.7 6.14 7.64 9.64 12.07
0.4 0.5 0.6 0.8 1 1.2 1.5 2 2.5
0.46 0.56 0.66 0.86 1.06 1.26 1.56 2.06 2.56
0.6 0.7 0.8 1 1.2 1.51 1.81 2.31 2.81
0.6 0.7 0.9 1 1.4 1.7 2 2.5 3
1.12 1.12 1.32 1.62 2.12 2.12 3.12 3.12 4.16
1 1 1.2 1.5 2 2 3 3 4
0.9 1 1.2 1.5 2 2.5 3 4 5
0.77 0.87 1.07 1.37 1.87 2.37 2.87 3.85 4.85
1.03 1.13 1.37 1.63 2.13 2.63 3.13 4.15 5.15
0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.4 0.4
5 6 8 8 10 15 15 20 25
15 16 17 18 20 22 24 28 32
Weight of per 1000 steel products(≈kg)
- - - - - - - - -
①,ds ≈ pitch diameter or major diameter

Alternative history

GB /T 832 - 1988
