Click Specification

Unit:mm

Cotter Pins - Metric Series, Extended Prong Square Cut Type

ASME/ANSI B 18.8.6M - 1994

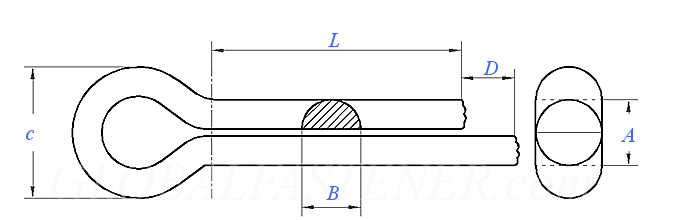

Display drawing:

美标ASME/ANSI B18.8.6M - 1994 ASME/ANSI18. Cotter Pins - Metric Series, Extended Prong Square Cut Type
Size
0.6 0.8 1 1.2 1.6 2 2.5 3.2
A max
min
B max
min
c min
D min
0.5 0.7 0.9 1 1.4 1.8 2.3 2.9
0.4 0.6 0.8 0.9 1.3 1.7 2.1 2.7
0.5 0.7 0.9 1 1.4 1.8 2.3 2.9
0.4 0.6 0.7 0.8 1.1 1.4 1.7 2.2
0.9 1.2 1.6 1.7 2.4 3.2 4 5.1
0.8 0.8 0.8 1.2 1.2 1.2 1.2 1.6
Size
4 5 6.3 8 10 13 16 20
A max
min
B max
min
c min
D min
3.7 4.6 5.9 7.5 9.5 12.4 15.4 19.3
3.5 4.4 5.7 7.3 9.3 12.1 15.1 19
3.7 4.6 5.9 7.5 9.5 12.4 15.4 19.3
2.8 3.5 4.6 5.9 6.7 9.4 12 14.5
6.5 8 10.3 13.1 16.6 21.7 27 33.8
2 2 2 2 3.2 3.2 3.2 3.2

Alternative history

ASME/ANSI B 18.8.6M - 1994 ASME B 18.8.200MB18.8.6M - 2000
