GB 806 - 1988Knurled Nut With Collar

简体 | 繁體 | FastenerExpo |

GB 806 - 1988

Unit: mm

GB 806 - 1988 Knurled Nut With Collar

Unit: mm

Find suppliers

Download

GB 806_M1.6

Download this CAD model

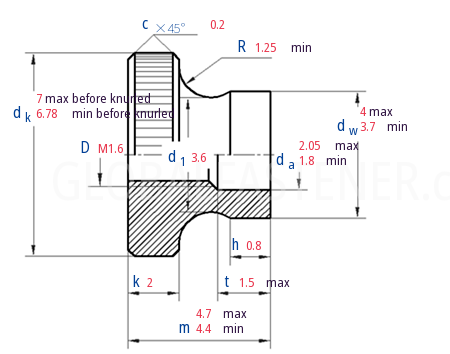

GB 806 - 1988 Knurled Nut With Collar

Thread Size
D

M1.6

P		Pitch
d_k		before knurled	max
			min
m		max
		min
k
d_w		max
		min
d_a		max
		min
t		max
R		min
h
d₁
c
per 1000 units ≈ kg

0.35
7
6.78
4.7
4.4
2
4
3.7
2.05
1.8
1.5
1.25
0.8
3.6
0.2
0.71
