GB 9459 - 1988Hexagon Thin Slotted Nuts - Fine Pitch Thread - Prodnct Grade A and B

简体 | 繁體 | FastenerExpo |

(Non-preferred) dimensions in parentheses.

GB 9459 - 1988

Unit: mm

GB 9459 - 1988 Hexagon Thin Slotted Nuts - Fine Pitch Thread - Prodnct Grade A and B

Unit: mm

Find suppliers

Download

GB9459@simple-P1_M8

Download this CAD model

GB9459-P1_M8

Download this CAD model

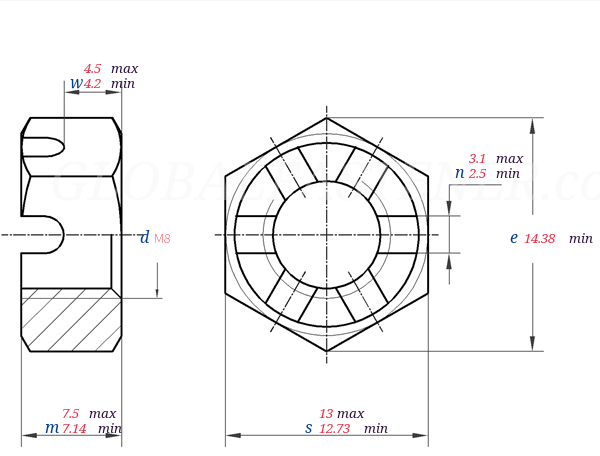

GB 9459 - 1988 Hexagon Thin Slotted Nuts - Fine Pitch Thread - Prodnct Grade A and B

Thread Size
d

M8

P	Pitch
	Pitch
e	min
m	max
	min
n	max
	min
s	max
	min
w	max
	min
per 1000 units ≈ kg

1
-
14.38
7.5
7.14
3.1
2.5
13
12.73
4.5
4.2
3.87
