DIN 7505 (B) - 1986

Unit: mm

DIN 7505 B - 1986 Particle Board Screws With Cross Recess Type Z, Pan Head - Form B

Unit: mm

Find suppliers

Download

DIN 7505B_2.5X10

Download this CAD model

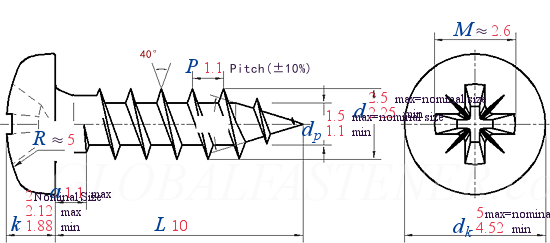

DIN 7505 B - 1986 Particle Board Screws With Cross Recess Type Z, Pan Head - Form B

Thread Size

2.5

d	max=nominal size
d	min
P	Pitch(±10%)
d_k	max=nominal size
d_k	min
k	Nominal Size
	max
	min
a	max
R	≈
d_p	max=nominal size
d_p	min
Socket No.
M	≈

2.5
2.25
1.1
5
4.52
2
2.12
1.88
1.1
5
1.5
1.1
1
2.6
